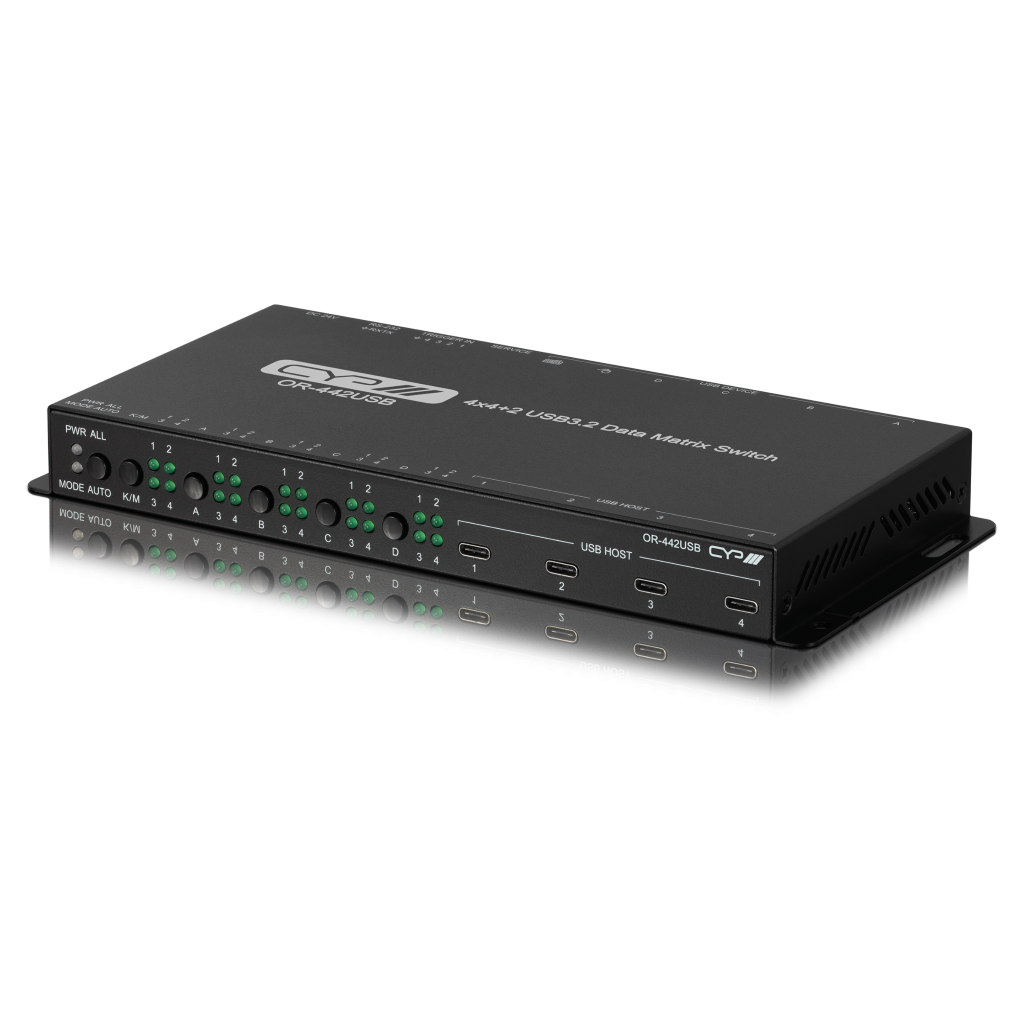

USB3.2/USB2.0/USB1.1 10 Gbps 4x4 OR-442USB
OR442USB
Switches 4 USB 3.2 Gen2/USB 2.0/USB 1.1 signal devices with keyboard and mouse to 4 host PCs. The matrix is backward compatible with USB 2.0 and USB 1.1. The maximum bandwidth is 10 Gbps. Plug-and-play functionality is supported. Each USB-C port provides 900 mA; USB-A provides a maximum of 500 mA for the keyboard.
€ 520,00 Excl. VAT .
Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschlieÃend eine kostenlose Beratung an!
Description
Technical Specification
Inputs:
4 x USB-C female
Outputs:
2 x USB-C female
4 x USB-A female (2xUSB-A Keyboard & Mouse)
Control options:
Frontpanel, RS232, GPIO/ USB (Service)
Formats supported:
USB: USB3.2 Gen2/USB2.0/USB1.1
Producer
CYP Europe
Product
OR442USB
Gehäuse
Metall
Weight (kg)
0,64
Color
Schwarz
Power supply type
Extern
Stromversorgung
24V/ 2,7A
Operating
0°C - 40°C
Abmessungen BxHxT mm
231,5x25x112,7mm
Artikel Nr.
10572
