Transmission Systems HDBaseT

What means HDBaseT Technology?

HDBaseT is a connection standard for transmitting high-definition multimedia signals. With the 5Play concept of HDBaseT systems uncompressed digital video and audio signals (2K / 4K / 3D), Ethernet, POE (Power over Ethernet), USB and various control signals over a single Ethernet LAN cables up to 100 m can be transmitted. The latest specification of HDBaseT also makes it possible to transfer for even longer distances over fiber.

What are the benefits of HDBaseT transmission systems?

  • Affordable Cable Installation
  • Simple cabling
  • also long cable runs possible
  • 5Play: Video, Audio, Ethernet, control signals and power over a single cable
  • High Resolution
  • Best quality
  • ultra-low latency
  • industry standard
  • Widespread

What is to be considered?
HDBaseT LITE uses, in contrast to the conventional data communication, an asymmetric process. The connections must be as stable as possible and without loose contact. It is not possible to resend erroneous bits in a live broadcast. In addition, a solid copper cable (no wires) is very important for the signal transmission. On the market there are special HDBaseT cable with a special shielding and strength. In addition, the final installation should be checked with a special HDBaseT testequipment.

What can be transferred?

  • Full HD (2K / 4K / 3D) video, uncompressed (compatible with all HDMI formats and supports all major features, including EPG, CEC, EDID and HDCP)
  • Audio multichannel (supports all popular audio formats, including Dolby Digital, DTS, Dolby TrueHD and DTS-HD Master Audio)
  • Control (IR, CEC, RS-232 bidirektikonal)
  • Native USB 2.0, (keyboard, mouse, touch screen function)
  • Network (10/100)

What does syscomtec offer?
Syscomtec markets HDBaseT systemse of CYP Europe. Syscomtec offers a broad selection of HDBaseT LITE systems to their retailers at exceptional conditions.

Which is the right system for my application?
Our highly qualified marketing department will help with the selection of the appropriate HDBaseT LITE system. Our technical support staff will support our partners with the planning and installation of the HDBaseT LITE systems. The most popular HDBaseT LITE systems can be delivered quickly.

What products are available?

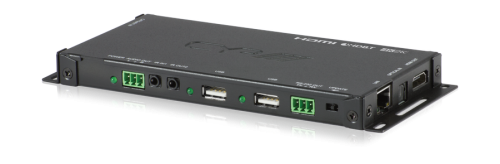

  • Extender
  • Transmitter
  • Receivers
  • Matrix Switchers
  • Matrix
  • Distributor
  • Switch

Which manufacturers are there?
CYP Europe
