Splitter HDMI2.0 UHD/ 4K / HDCP2.2 1:8 QU-8-4K22

Hersteller

QU84K22

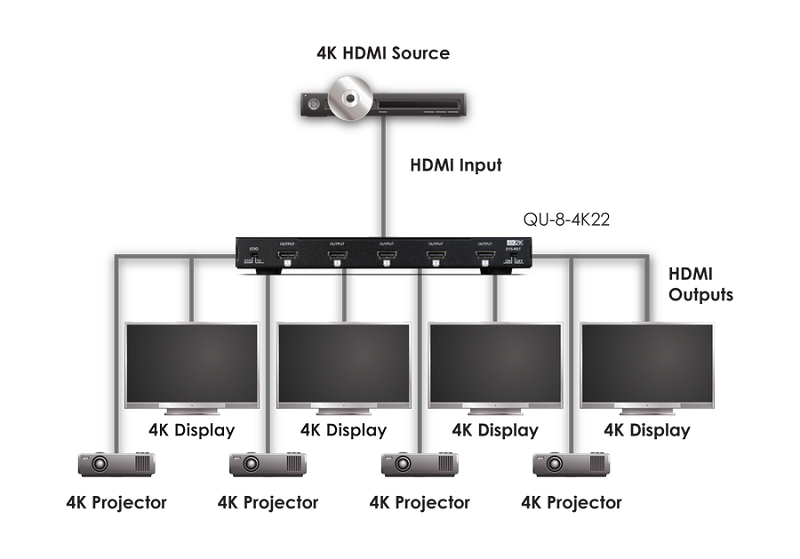

Accepts one HDMI2.0/ HDCP2.2 input and splits this signal to eight identical outputs. Each buffered output can run 1080p/8-bit up to 20 metres and can also be cascaded up to 3 layers.

Preis auf Anfrage

Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschließend eine kostenlose Beratung an!

Description


Technical Specification

Input:
1 x HDMI female
Outputs:
8 x HDMI female
Control options:
CEC, Mini-USB (Service)
Resolutions supported:
640x480 to 1920x1200 and 480i to 1080p and UHD/ 4K@60Hz
Formats supported:
Video: HDMI2.0, HDCP2.2, DVI1.0
Audio: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, DTS 2/5.1CH, Dolby TrueHD, DTS-HD Master Audio & Dolby Atmos

Producer
CYP Europe
Product
QU84K22
Gehäuse
Metall
Weight (kg)
0,60
Color
Schwarz
Power supply type
Extern
Stromversorgung
5V/ 2,6A
Abmessungen BxHxT mm
117 x 25 x 128 mm
Artikel Nr.
6750
