RGB Spectrum Multi-Display Prozessor HDMI DP IN 4K@60Hz 1:4 QuadPlex

Hersteller

QPXHIN

RGB Spectrum-s QuadPlex™ multi-display processor appliance is a breakthrough in video wall design flexibility and affordability. The versatile QuadPlex processor can drive up to four displays from a single video source in a wide variety of configurations, from 2x2 to 1x4 to artistic layouts.
An intuitive software interface provides auto-discovery and configuration of each QuadPlex device. Display layouts can be selected using the front panel buttons on the device or via the web network interface. Combine QuadPlex with RGB Spectrum-s video wall processors or multiviewers to create video walls of any size and shape, or simply use with a media player
for small installations. QuadPlex provides complete layout flexibility, with each display having independent resolution, scaling, cropping and rotation.

€ 2.580,00 Excl. VAT .

Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschließend eine kostenlose Beratung an!

Description


Technical Specification

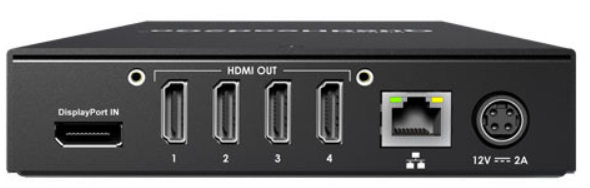

Input:
1x DisplayPort DP 1.2 Fe.
1x RJ 45 Bu. Configuration
Outputs:
4x HDMI 1.4 Fe
Max. Resolution Input:
3840x2160 @ 60Hz, 3840x2160 @ 30Hz, 7680x1080 @ 60Hz, 7680x1080 @ 30Hz,1920x4320 @ 60Hz, 1920x4320 @ 30Hz
Max. Resolution Output:
1920x1080 @ 60Hz, 1920x1080 @ 30Hz, 1920x1200 @ 60Hz, 1920x1200 @ 30Hz
Single Unit: 2x2, 4x1, 3x1, 2x1, 1x2, 1x3, 1x4, freie Konfiguration (portrait und landscape orientation)

Producer
RGB Spectrum
Product
QPXHIN
Gehäuse
Metall
Weight (kg)
3,00
Color
Schwarz
Power supply type
Extern
Stromversorgung
12V / 2A DC
Abmessungen BxHxT mm
181 x 32 x 180
Artikel Nr.
8611
