Pattern,- Audio Generator & Analyser HDMI2.0 / HDCP2.3 XA-8P
XA8P

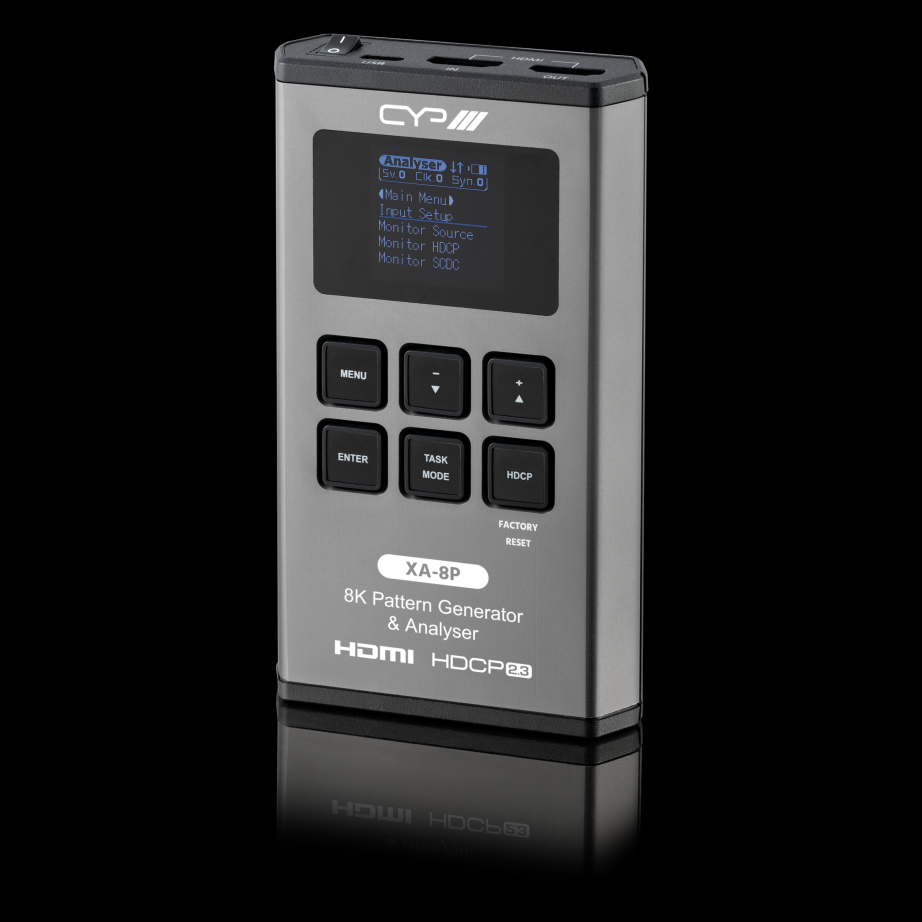

The XA-8P 8K HDMI Pattern Generator & Analyser is the ideal solution for professional AV installers to verify HDMI signal paths. Compliant with HDMI 2.1 and HDCP 1.4/2.2/2.3, it offers testing features such as system analysis, pattern generation, and EDID management. With battery power and a convenient USB charging port, it stays flexible even for demanding installations. Intuitive front-panel controls and top-mounted HDMI ports ensure easy handling.
Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschlieÃend eine kostenlose Beratung an!
Description
Technical Specification

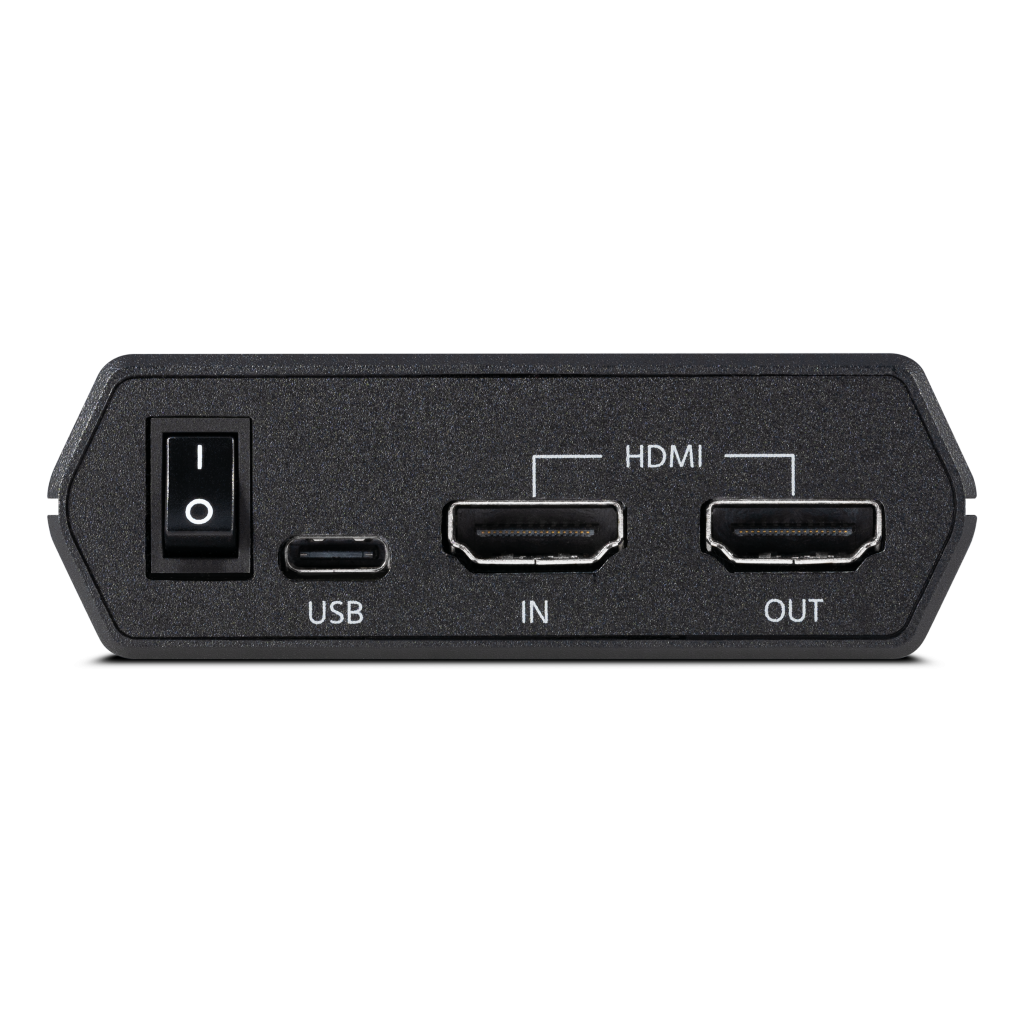

Input:
1 x HDMI female
1 x USB-C
Outputs:
1 x HDMI femal
Control options:
Frontpanel
Resolutions supported:
up to 3840x2160@60Hz (YUV 4:4:4, 8-bit) and 4096x2160@60Hz (YUV 4:4:4, 8-bit)
Formats supported:
Video: HDMI2.0, HDCP1.4/2.2
