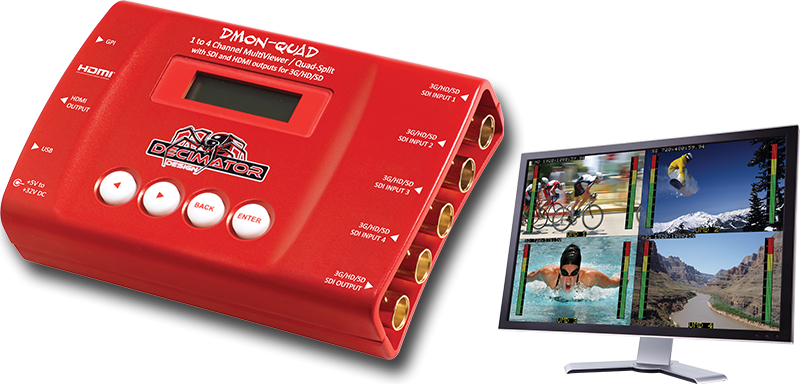

Multiviewer (3G/HD/SD)-SDI to HDMI/3G SDI and Converter DMON-QUAD

DMONQUAD

The DMON-QUAD is a truly portable converter, that incorporates our easy to use LCD and button control system. This gives you easy access to most of the amazing features without using complicated LED/button control, dip switches or having to carry around a computer to change a simple setting.
4 x (3G/HD/SD)-SDI to HDMI Converters with 1 to 4 MultiViewer, Custom Layouts and 8 Channel Audio Meters

€ 480,00 Excl. VAT .

Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschließend eine kostenlose Beratung an!

Description


Technical Specification

Supports 3G level A and B on inputs and output, allowing conversion between 3G level A and B
Low cost (3G/HD/SD)-SDI 1 to 4 Multi-Viewer or 4 to 1 input multiplexer
Custom Layouts with various standard layouts
16 Character UMD overlay per window with individual enables, custom positioning and size
8 Channel Audio Metering overlay per window with individual enables, custom positioning and size
Horizontal and/or Vertical image flipping per window
Audio ID overlay
Tallies can be applied to either Tally Boxes (Default) or Border
Tally boxes allows for up to 4 Tallies per window
Fast switching between inputs using Full-Screen scaling
Selectable output format in both Full-Screen Multi-Viewer mode
Low latency buffering for each input allowing non-synchronous inputs
Linked (3G/HD/SD)-SDI and HDMI outputs
4 x (3G/HD/SD)-SDI inputs with auto detection (26 Formats supported in total)
Each window is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously
Variable aspect ratios per window
In Pass-Through mode the selected input is passed through to both the (3G/HD/SD)-SDI and HDMI outputs

Producer
DECIMATOR DESIGN
Product
DMONQUAD
Gehäuse
Metall
Weight (kg)
0,50
Color
Rot
Power supply type
Extern
Stromversorgung
5V - 32V DC
Operating
0°C to 40°C
Abmessungen BxHxT mm
123 x 79 x 29 mm
Artikel Nr.
7459
