Mediaplayer 3840x2160@60Hz, LAN, 2 USB, RS232, 8 GPIO XD1034

Hersteller

XD1034

Full screen or multi screen layouts, 4K video with Dolby Vision and HDR10+, looping playlists, webside HTML5 (Advanced), Update content via LAN, interactiv solutions with GPIOs, RS232, touch screen , USB possible, synchronisation of several media players, online reports, text ticker or RSS feeds, world clock with date.

€ 780,00 Excl. VAT .

Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschließend eine kostenlose Beratung an!

Description


Technical Specification

Input:
1 x Micro SDXC slot (up to 2TB)
Outputs:
1 x HDMI female
1 x 3,5mm mini Jack Audio female (analog & digital)
Control options:
LAN (Gbit), WLAN optional, CEC, 2 USB A & C, RS232, 8 GPIO bi-directional, IR (In/ Out)
Resolutions supported: (UHD)
3840x2160x24/ 25/ 30/ 50/ 60Hz
Resolutions supported: (Upscaling)
3840x2160x24/ 25/ 29.97/ 30Hz
Resolutions supported: (Full HD)
1920x1080@24/ 25/ 29.92 /30 /50 /59.94 /60Hz,
1920x1080x50/ 59.94 /60i, 1600x1200x60Hz, 1440x1050x60/ 75Hz, 1440x900x60/ 75Hz, 1360x768x60Hz, 1280x1024x60/ 75Hz, 1280x960x60Hz, 1280x800x60 /75Hz, 1280x768x60Hz,
1280x720x50/ 59.94/ 60Hz, 1024x768x60Hz, 800x600x60/ 75Hz, 720x576x50Hz/50i, 720x480x59.94/ 60Hz/60i, 640x480x60Hz
Formats supported:
Video: H.265 (4K) .ts, .mov, .mp4, .mkv & H.264 (1920x1080)(MPEG-4, Part 10), MPEG-2 und MPEG-1
Video codec: .ts, .mpg, .vob, .mov, .mp4, .m2ts, .wmv
Bild: BMP, JPEG and PNG
Audio: MP2, MP3, AAC, WAV (AC3 5.1 Audio pass trough)
HTML5: Advanced

Producer
BrightSign LLC
Product
XD1034
Gehäuse
Metall
Weight (kg)
1,25
Color
Lila
Power supply type
Extern
Stromversorgung
12V, 3A (36 Watt)
Operating
-20° - +70° C

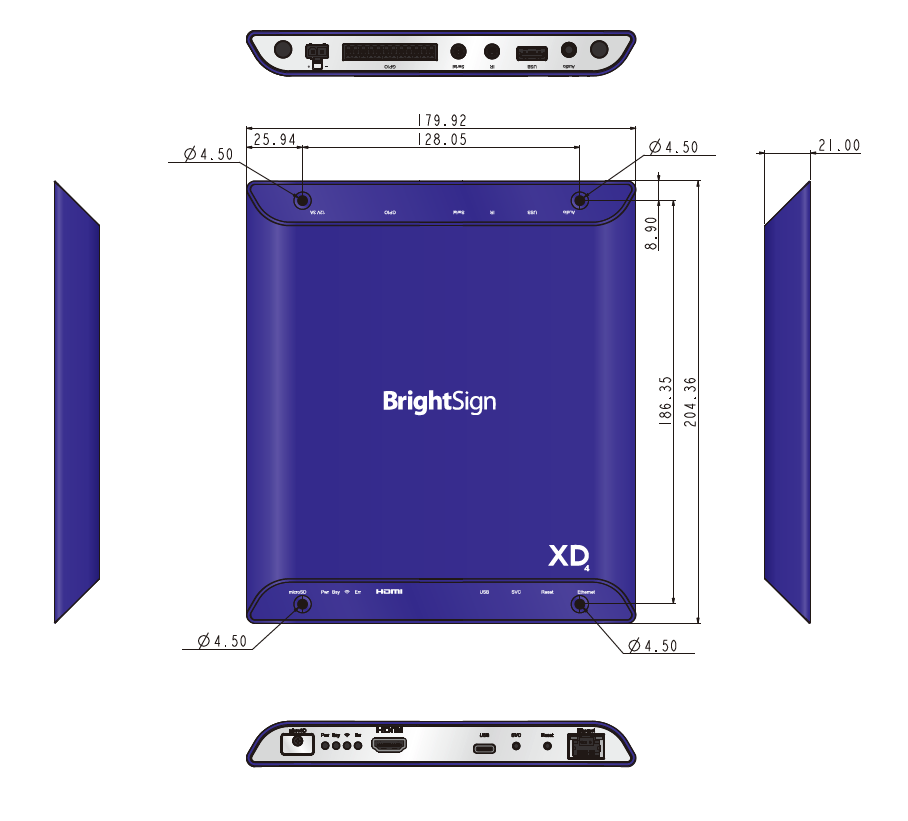

Abmessungen BxHxT mm
179,9 x 21,9 x 204,2 mm
Artikel Nr.
7531
