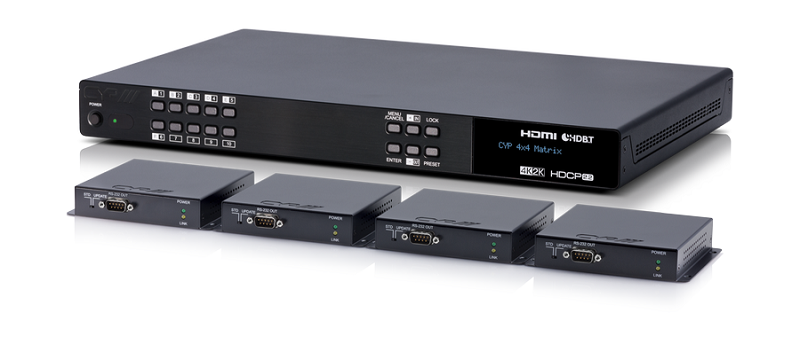

Matrix Switcher Set/ 4xRX (HDBTLITE2) 4x6 HDMI2.0 UHD 60m PUV-44XPL-4K22-KIT

Hersteller

PUV44XPL4K22KIT

??The PUV-44XPL-4K22-KIT is a HDMI/HDBaseT LITE Matrix which supports the transmission of video (resolutions up to 4K2K@60Hz, HDCP 2.2) and multi-channel digital audio from 4 HDMI sources to 4 HDBaseT LITE outputs and 2 independent HDMI outputs. HDBaseT outputs allow transmission via a single CAT5e/6/7 cable up to 60m, whilst the independent HDMI outputs support cable lengths of up to 10m. This matrix supports high resolution digital audio formats such as LPCM 7.1CH,Dolby TrueHD, Dolby Digital Plus, Dolby Atmos and DTS-HD Master Audio as well as 3D video content. This matrix also features audio breakout whereby de-embedded analogue L/R audio outputs are provided for each of the HDBaseT zones (A to D). The Power over HDBaseT (PoH) function provides power to the supplied PUV-1210PL-RX receivers which also support 2-way IR and RS-232 pass-through. Control is via manual selection buttons, IR, RS-232, Telnet or Web GUI.

€ 2.400,00 Excl. VAT .

Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschließend eine kostenlose Beratung an!

Description


Technical Specification

Inputs:
4 x HDMI female
4 x 3,5 mm female for IR
1 x 9 Pin Sub-D (RS 232)
1 x RJ45 LAN for Firmware Update or control
1x USB for Service
Outputs:
4 x RJ45 female (HDBaseTLITE)
2 x HDMI female
4 x 3,5 mm female for IR
Control options:
Frontpanel, RS232, LAN oder IR
Resolutions supported:
VGA to WUXGA and 480i to 1080p und 4K/ UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@60Hz (YUV 4:2:0)
Formats supported:
Video: HDMI2.0, HDCP1.4/ 2.2 und DVI 1.0 (Deep Color 10 & 12 bit)
Audio: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos und DTS-HD Master Audio

Producer
CYP Europe
Product
PUV44XPL4K22KIT
Gehäuse
Metall
Weight (kg)
6,00
Color
Schwarz
Power supply type
Extern
Stromversorgung
24V / 6,25A DC
Operating
0°C - 40°C
Abmessungen BxHxT mm
438 x 45 x 316 mm
Artikel Nr.
6700
