Matrix Switch HDMI2.0 UHD/4K, HDCP2.2, USB3.0, Audio, HDBT3 4x2 SCT-MXKVM42-H2U3
SCTMXKVM42H2U3

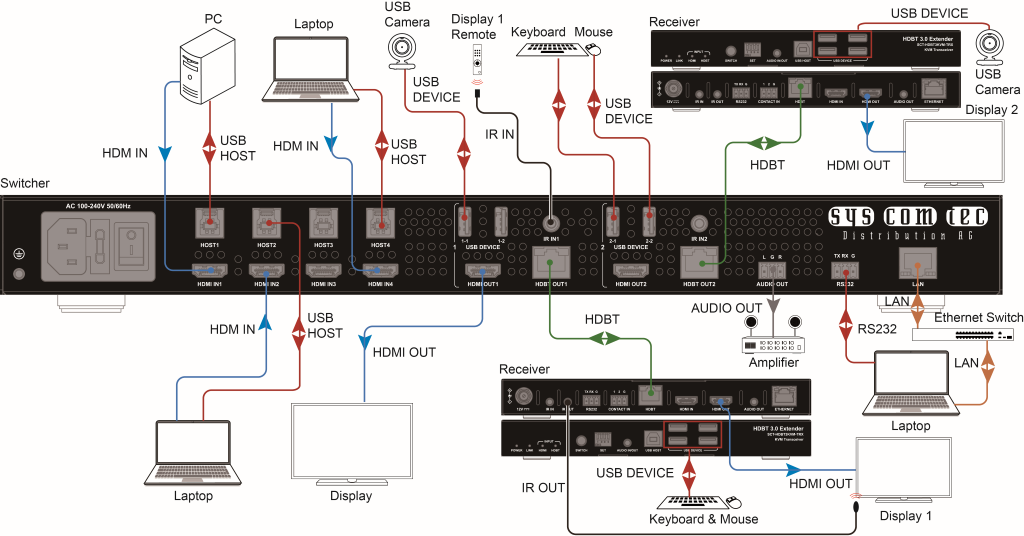

This product is a 4x2 HDMI2.0 KVM matrix switcher that supports full 4K and USB 3.0/2.0 matrix switching between four HDMI inputs and two groups of HDBT and HDMI outputs. It can transmit 4K@60Hz signals up to 100m/330ft via a single Cat 6a/7 cable. It also features not only basic functions like cross-point switching and control (IR, RS232, LAN), but also advanced functions like auto-downscaling for each HDMI output when it is connected to 1080P display. With four USB host ports, two groups USB devices and remote USB devices, the device also supports multiple USB connections for easy management.
Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschlieÃend eine kostenlose Beratung an!
Description
Technical Specification
Inputs:
4 x HDMI female
4 x USB3.0 B female
Outputs:
2 x HDMI female
2 x RJ45 female(HDBaseT with PoE)
2 x 2 USB3.0 A female
1 x Phoenix 3 Pin female (analog Audio)
Control options:
Fronttaste, Ethernet, RS232, IR
Solutions supported:
VGA to WUXGA and 480i to 1080p and 4K/ UHD@24/25/30/50Hz, 4K/ UHD@60Hz (YUV4:4:4)
Formats supported:
Video: HDMI2.0, HDR, HDCP2.2/ 1.4, DVI1.0
Audio: analog Audio
USB: 3.0 (5Gbps)/ 2.0/ 1.1
