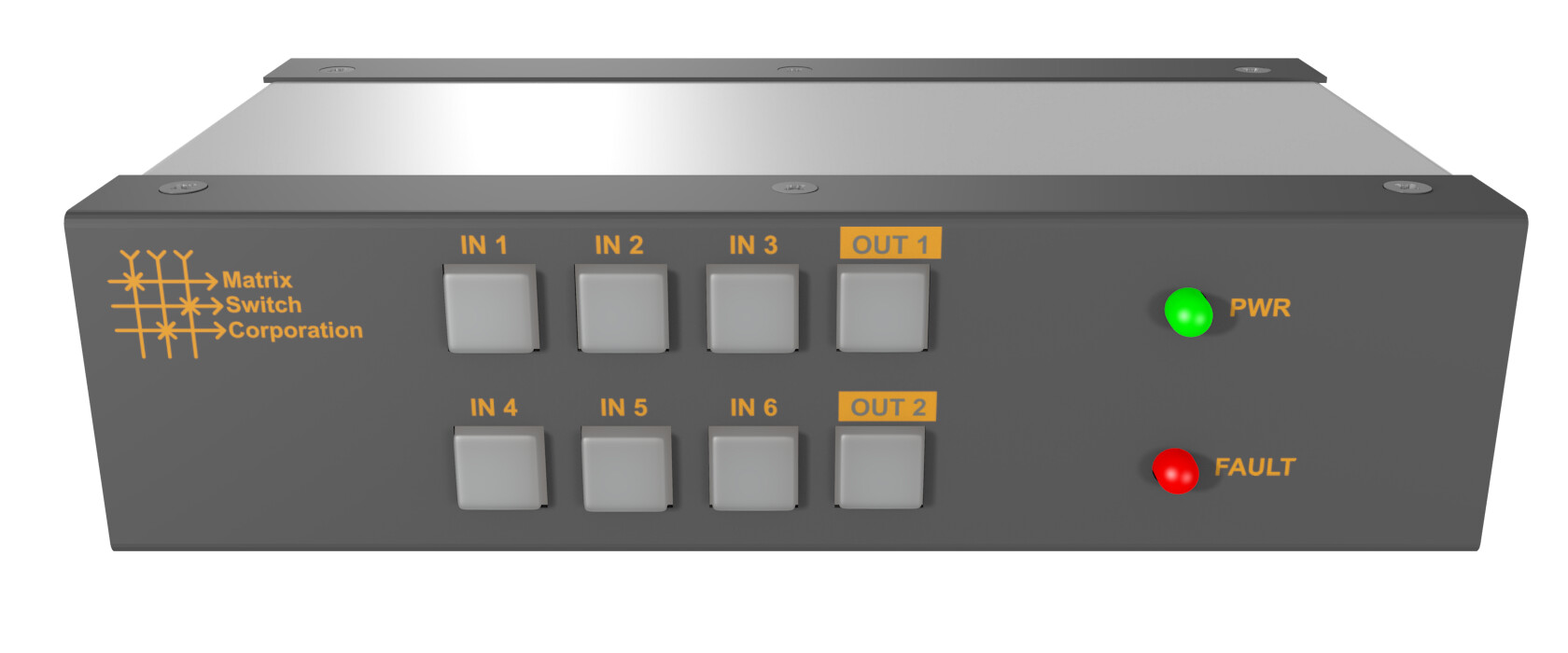

Matrix SD-/ HD-/ 3G/ 6G/ 12G-SDI 6x2 m. Buttons MSC-UTX62L

Hersteller

MSCUTX62L

Matrix switch SD-SDI/ HD-SDI/ 3G/ 6G/ 12G-SDI 4x4 MSC-UTX44L
Supplier: Matrix Switch
4 HDSDI Videosources can be switched up to 4 Sinks. Each output have to connectors. All SMPTE Standards (SMPTE) 12G (11.88 Gbit/s), 6G (5.94 Gbit/s), 3G (2.97 Gbit/s), HD (1.484 Gbit/s), and SD (270 Mbit/s) are re-clocked, non-standard SDI rates passed by. Embedded Audio and ancillary Data are passes by. Cabel compensation up to 120m @3G with Belden 1694A. Additional Features: 10 presets available, Status LED, support redundant Power supply, Web GUI, RS-232/RS-485 controllable, USB port, Sync Ref, Rack Mount version.

€ 1.790,00 Excl. VAT .

Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschließend eine kostenlose Beratung an!

Description


Technical Specification

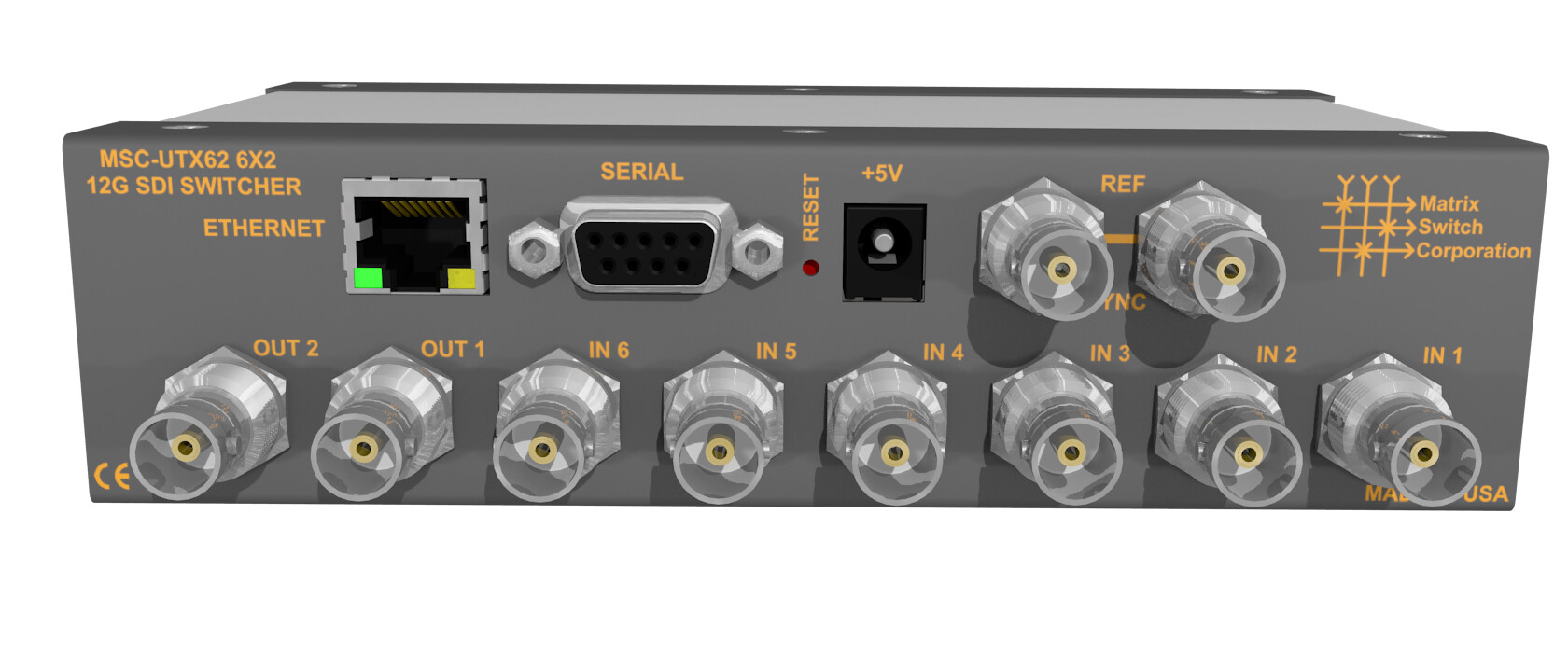

In: 4 x BNC Buchsen
1 x 9Pin Sub D f. RS232/485
1 x RJ 45 f. Ethernet
2 x BNC In/Out f. Ref. Sync
1 x USB Buchse
Out: 1 x 4 BNC Buchsen
Unterstützt folgende Datenraten: 12G (11.88 Gbit/s), 6G (5.94 Gbit/s), 3G (2.97 Gbit/s), HD (1.484 Gbit/s), and SD (270 Mbit/s)
Unterstütze Datentypen: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 310M, SMPTE 372M, SMPTE 425M-A, SMPTE 425M-B, ITU-R BT.656 and ITU-R BT.601

Producer
Matrix Switch
Product
MSCUTX62L
Gehäuse
Metall
Weight (kg)
1,00
Color
Grau
Power supply type
Extern
Stromversorgung
5 VAC, 10 W
Operating
-0° C bis +70°C
Abmessungen BxHxT mm
167 x 45 x 101
Artikel Nr.
8966
