Line Driver HDMI2.0 UHD/ 4K / HDCP2.2 5m RE-101-4K22

Hersteller

RE1014K22

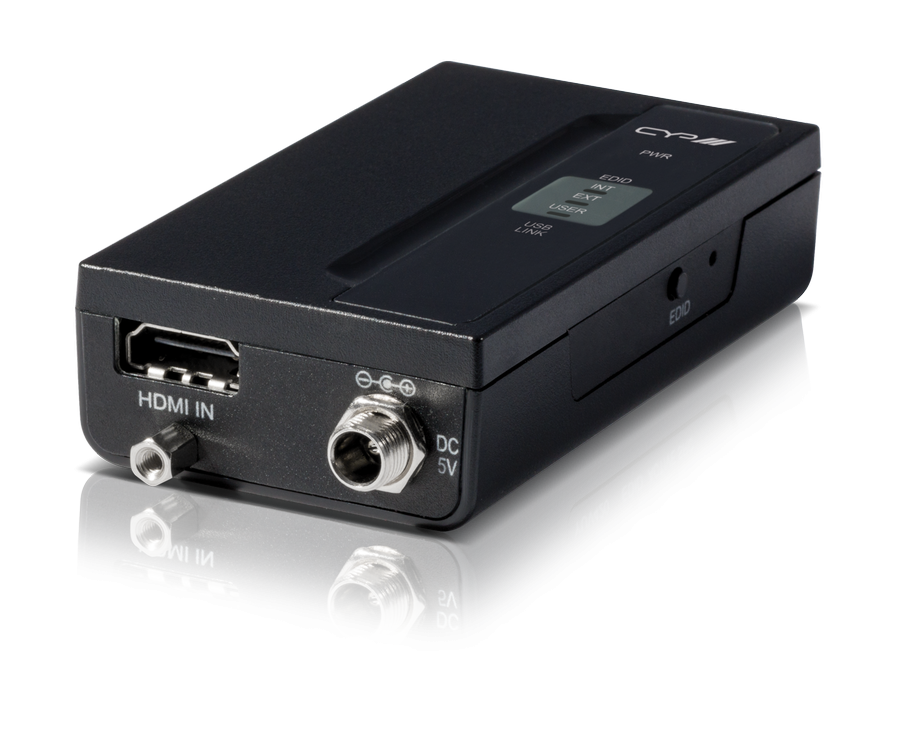

??The RE-101-4K22 is designed to enhance and stabilize high-bandwidth HDMI signals, allowing the user to extend a UHD 4K, HDMI 2.2 signal an additional 5m whilst also providing the function of customized EDIDs. The built in EDID management support allows the user to easily switch between three distinct EDIDs (Internal, External, and User). With the use of the optional PC software it is possible to create, edit, upload or download the customized User EDID. The unit’s toggle switch and simple LED design allows the user to quickly switch between different configurations while viewing EDID status information.

€ 160,00 Excl. VAT .

Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschließend eine kostenlose Beratung an!

Description


Technical Specification

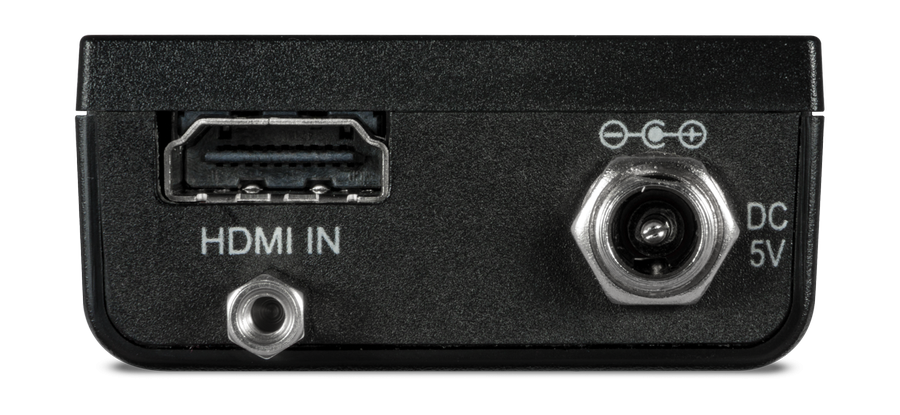

Input:
1 x HDMI female

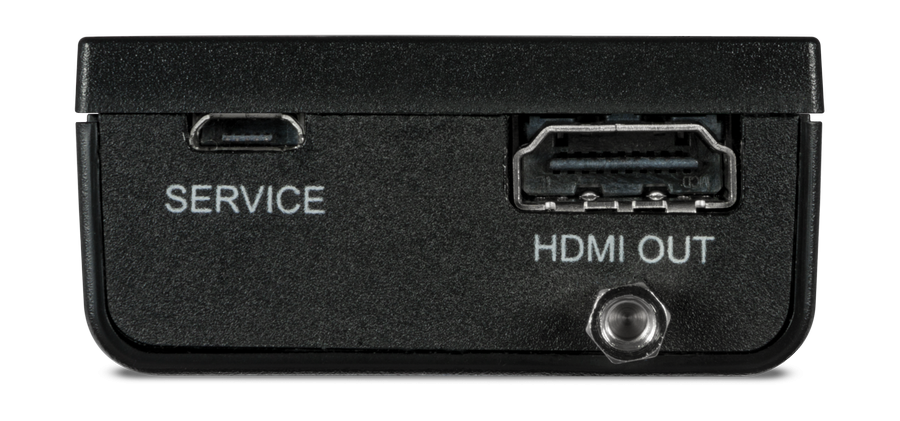

Output:
1 x HDMI female
Resolutions supported:
640x480 to 1920x1200 and 480i to 1080p and UHD/ 4K@60Hz (4:4:4, 8 bit)
Formats supported:
Video: HDMI2.0, HDCP2.2 and DVI1.0
Audio: Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio + LPCM, Audio Sampling up to 192kHz 24 bit

Producer
CYP Europe
Product
RE1014K22
Gehäuse
Kunststoff
Weight (kg)
0,70
Color
Schwarz
Power supply type
Extern
Stromversorgung
5V / 2,6A DC
Abmessungen BxHxT mm
98 x 22 x 51 mm
Artikel Nr.
6910
