LAN System DVI/ Audio/ USB2.0 100m EL4500

Hersteller

EL4500

The KVM Extender transmit one DVI-D (max. 1680x1050), one Hi-Speed USB2.0 or USB1.1 and 2 channel Audio over 1 UTP CAT5 or CAT6 cable to 500m. The new technologie Rapid Pairung Protocol supports a point to point connection on a LAN and a network switch. HDCP not supported.


€ 378,00 Excl. VAT .

Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschließend eine kostenlose Beratung an!

Description


Technical Specification

Transmitter
Inputs:
1 x DVI-D female
1 x USB Typ B
Outputs:
1 x RJ45 female

Receiver
Inputs:
1 x RJ 45 female
Outputs:
1 x DVI-D female
3 x USB Typ A

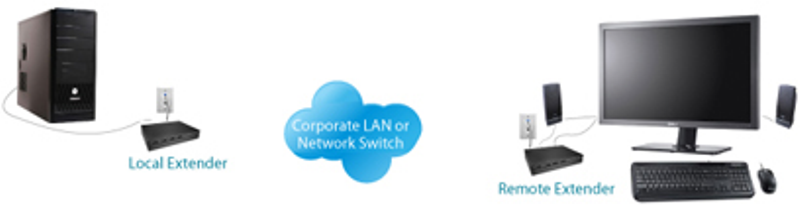

Allows for connection on a LAN and a network switch, Video Latency less 60ms, DVI-D with 24 bit depth color, HDCP not supported

Producer
Icron
Product
EL4500
Gehäuse
Metall
Weight (kg)
1,00
Color
Silber
Power supply type
Extern
Stromversorgung
TX:5V, 3A(15W) RX:24V, 1A(24W)
Operating
0° C - + 50° C
Abmessungen BxHxT mm
175 x 30 x 112
Artikel Nr.
5140
