Fiberoptic extenderset HDMI2.0 UHD,4K/ LAN/ RS232/ IR MM/ SM 1 Fi
DVI7365
Set consists of transmitter module and receiver module. Transmits a HDMI2.0 (4096x2160@60Hz) signal over one Multimode (850 nm) or Single mode Fiber. Pure optical transmission.
Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschlieÃend eine kostenlose Beratung an!
Description
Technical Specification

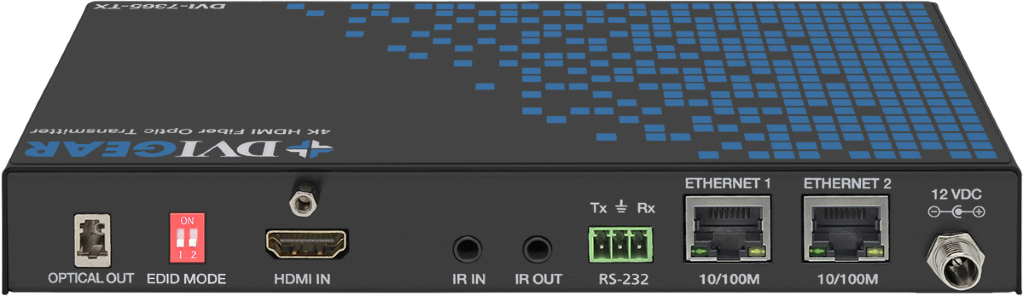

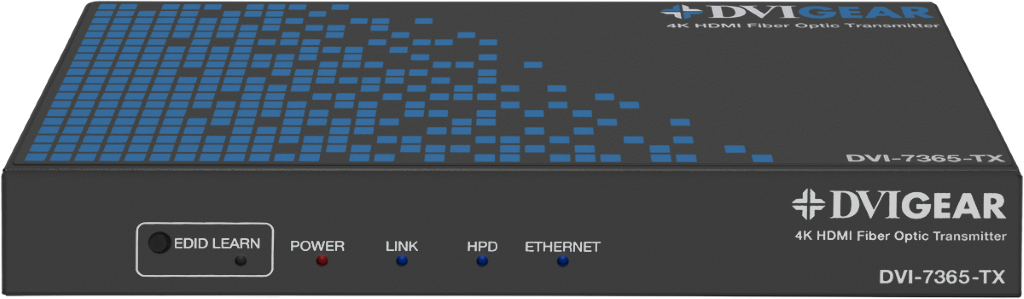

TX:
Eingänge:
1 x HDMI female
1 x 3,5mm mini jack female (IR)
Ausgänge:
1 x LC for Fiber
1 x 3 Pin female (RS232)
1 x 3,5mm mini jack Buchse (IR)
2 x RJ45 female (LAN)

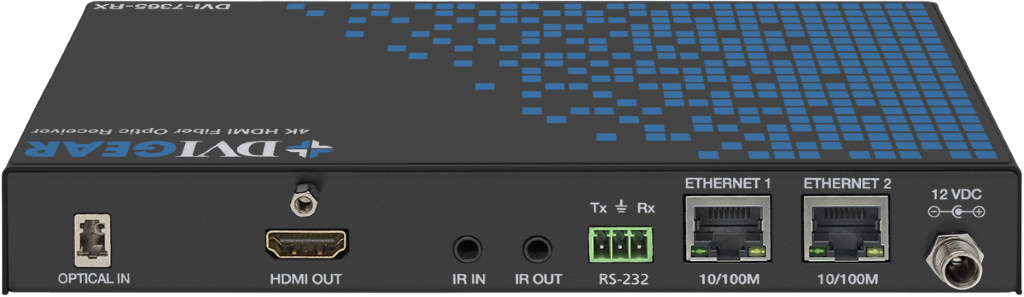

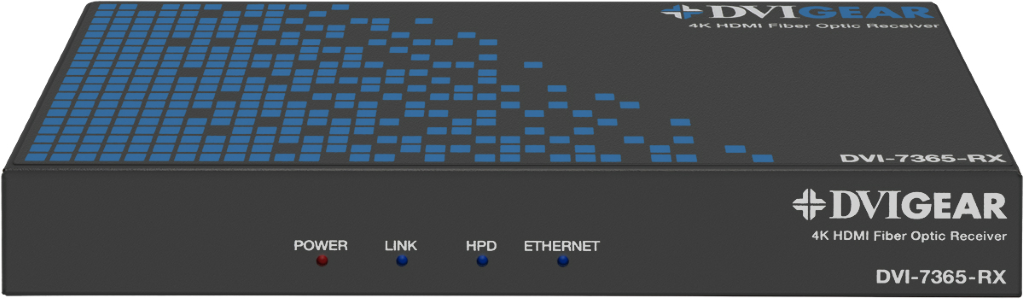

RX:
Eingänge:
1 x LC for Fiber
1 x 3 Pin female (RS232)
1 x 3,5mm mini jack female (IR)
2 x RJ45 female (LAN)
Ausgänge:
1 x HDMI female
1 x 3,5mm mini jack female (IR)
Fiber:
9/125µ Singlemode Fiber: 3 km
50/125µ OM3 Multimode Fiber: 300m
WDM Filter: 1270nm / 1290nm / 1310nm / 1330nm / 1490nm / 1550nm filter
Resolutions supported:
VGA to WUXGA and 480i to 1080p up to 4096x2160@60Hz (4:4:4)
Formats supported:
Video: HDMI2.0, HDCP1.4/ 2.2 und DVI 1.0 (Deep Color 10 & 12 bit)
Audio: Embedded HDMI digital audio up to 8-channel (7.1) LPCM, 48 kHz,
24-bit audio capability
