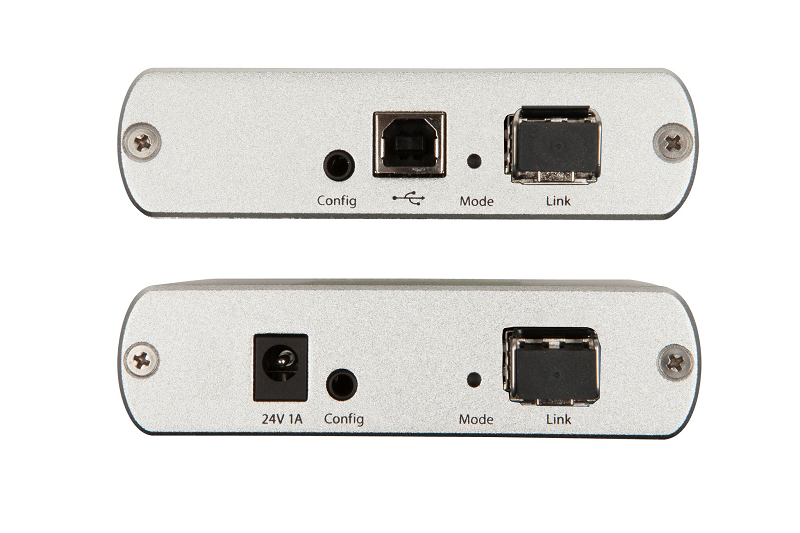

Fiber System USB2.0 4 Port 500m MM Ranger 2324

Hersteller

2324

The USB Ranger transmit one Hi-Speed USB2.0 or USB1.1 over 1 Fiber optic cable with 2 Multimode strings up to 500m. Supports the following PC systems: Windows, Mac OS and Linux

€ 1.120,00 Excl. VAT .

Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschließend eine kostenlose Beratung an!

Description


Technical Specification

Transmitter
Inputs:
1 x USB Typ A
Outputs:
2 x LC female

Receiver
Inputs:
2 x LC female
Outputs:
4 x USB Typ A
Distance:
MM 50/125 µm: 500m
MM 62,5/125 µm: 275m
Output power at the Receiver:
4 x 600mA

Producer
Icron
Product
2324
Gehäuse
Metall
Weight (kg)
0,90
Color
Silber
Power supply type
Extern
Stromversorgung
24V, 1A
Operating
0° C - + 50° C
Abmessungen BxHxT mm
100 x 26 x 76 mm
Artikel Nr.
6837
