Fiber optic set DVI/ HDCP Single Link 1920x1200 MM 1 fiber DSP-M
DSPM

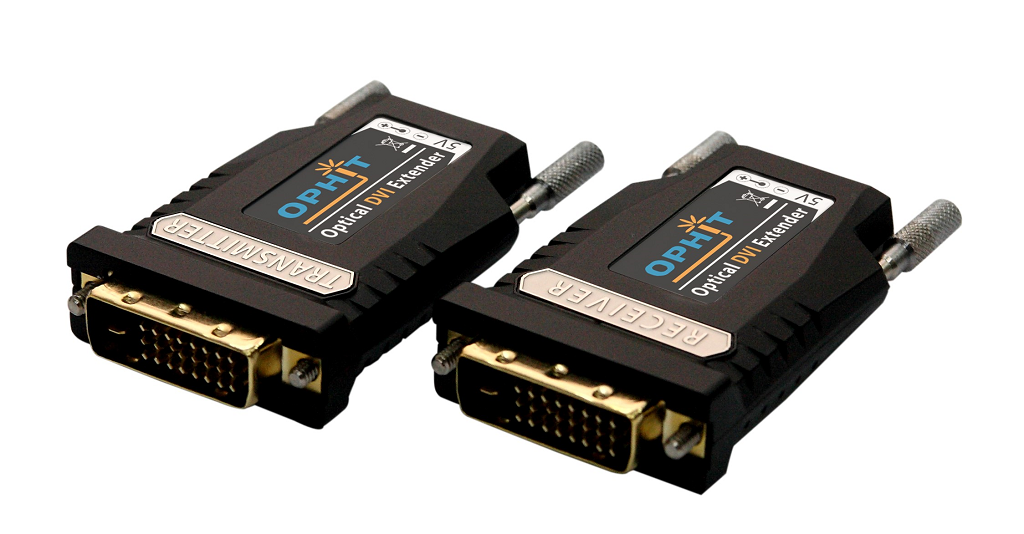

Set consists of transmitter module and receiver module. Transmits a DVI signal over one multimode (850 nm) fiber. Pure optical transmission.
€ 840,00 Excl. VAT .
Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschlieÃend eine kostenlose Beratung an!
Description
Technical Specification
In-/Outputs: (transmitter and receiver)

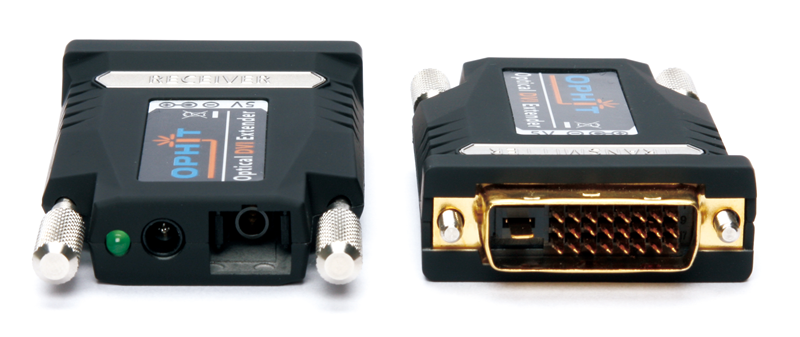

1 x 25 pin male DVI-D connectors
1 x SC fiber optic connector
Max. distance: 300m@50µm.
Max. resolutions: 1600 x 1200, 1920 x 1200 and 1080p (HDTV)
supports EDID and HDCP
no DVI-A signals supported
Producer
Ophit
Product
DSPM
Gehäuse
Metall
Weight (kg)
0,10
Color
Schwarz
Power supply type
extern
Stromversorgung
5 V 0,5 A DC
Operating
0°C - + 50°C
Abmessungen BxHxT mm
40 x 14 x 60
Artikel Nr.
5423
