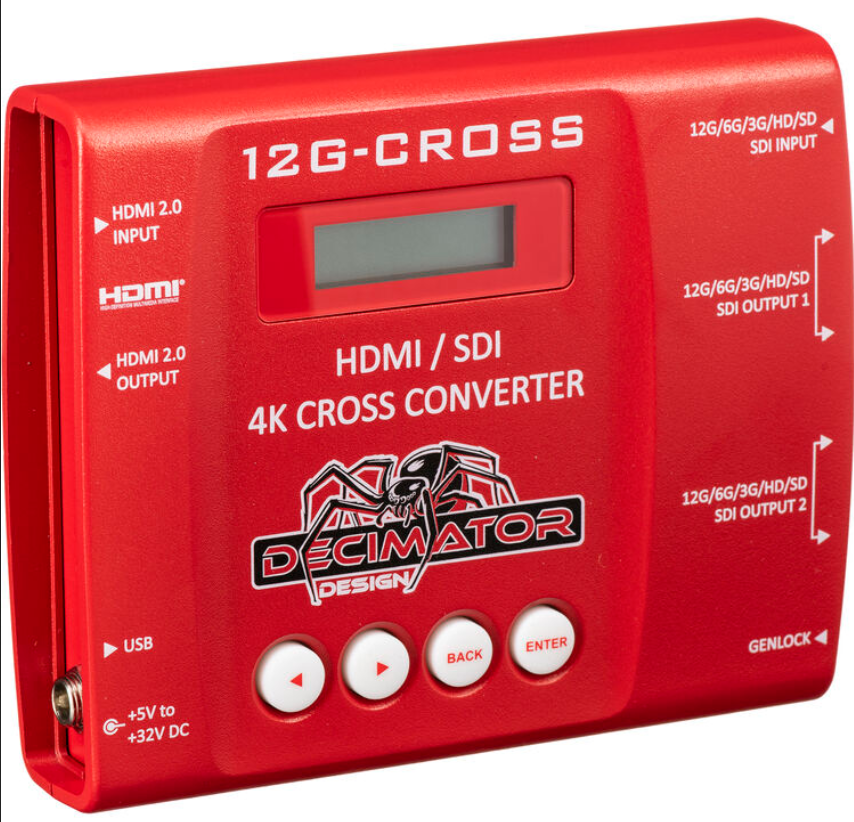

DECIMATOR DESIGN Converter/ Scaler Up/ Down/ Cross HDMI2.0 & SDI
12GCROSS
Allows either of the HDMI or SDI outputs to be simultaneously sourced from either the HDMI or SDI input or the new 4K scaling engine. The 4K scaling engine can be driven by either the SDI or HDMI input, supports horizontal and/or vertical flipping and can be locked to either the SDI, HDMI or Genlock input.
Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschlieÃend eine kostenlose Beratung an!
Description
Technical Specification
Inputs:
1 x BNC female for max. 12 G SDI
1 x HDMI 2.0 female
1 x BNC female Genlock
1 x USB for Control
Outputs:
1 x HDMI 2.0 female
2 x BNC female for max. 12 G SDI Out 1
1 x BNC female for max. 12 G SDI Out 2
Control options:
Frontpanel
Resolutions supported:
525i to 1080p
Formats supported:
Video: from 720x576 (PAL) 720x480i (NTSC) up to 12G:SMPTE 2048-1/2036-1@11.88 and 11.868Gb/s
(3840 or 4096) x 2160p@60/59.94/50Hz
HDMI: from 720x576 (PAL) 720x480i (NTSC) up to (4096 or 3840) x 2160p@60/59.94/50/30/29.97/25/24/23.98Hz
