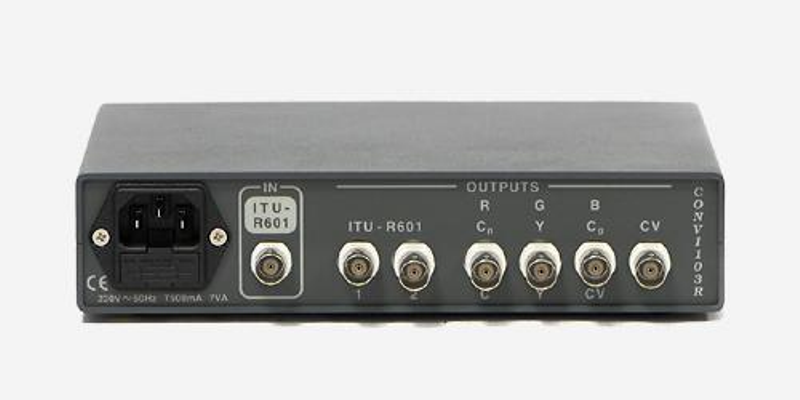

Converter SDI auf Analog CONVI103R

Hersteller

CONVI103R

Accepts in Input a serial digital signal ITU-R601 (SD-SDI) and converts this into various analog formats available on the 4 output BNC

€ 90,00 Excl. VAT .

Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschließend eine kostenlose Beratung an!

Description


Technical Specification

Inputs:
1 x ITU-R601
Outputs:
2 x ITU-R601, regenerated & reclocked
1 x CV (fixed)
3 programmable on BNC
CV,Y,C or
Cb,Y,Cr or
B,G,R
Internal TEST generator on all the outputs,
Possibility of disabling the colour,
Possibility of synch. insertion in RGB
2 selectable internal digital filters
Output level adjustment using trimmer on front panel

Producer
Elpro Video Labs
Product
CONVI103R
Gehäuse
Metall
Weight (kg)
0,90
Color
Schwarz
Power supply type
Intern
Stromversorgung
230 V
Abmessungen BxHxT mm
200 x 44 x 170
Artikel Nr.
2143
