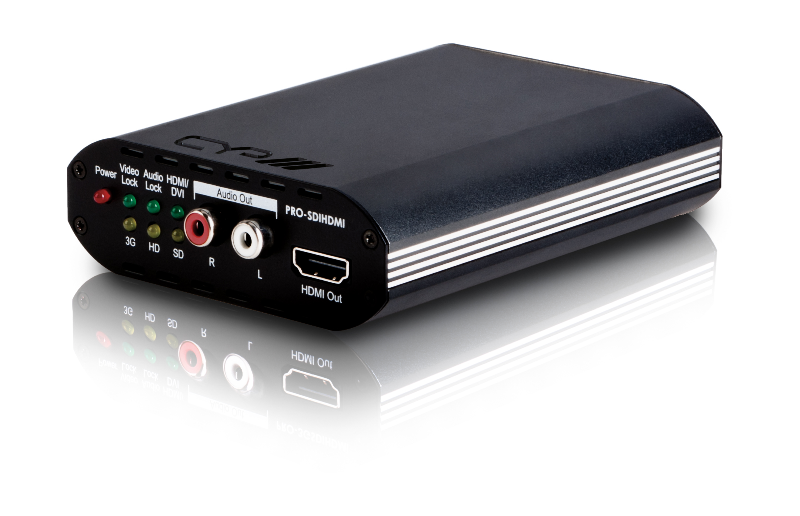

Converter SD-SDI/ HD-SDI/ 3G-SDI to HDMI PRO-SDIHDMI
PROSDIHDMI

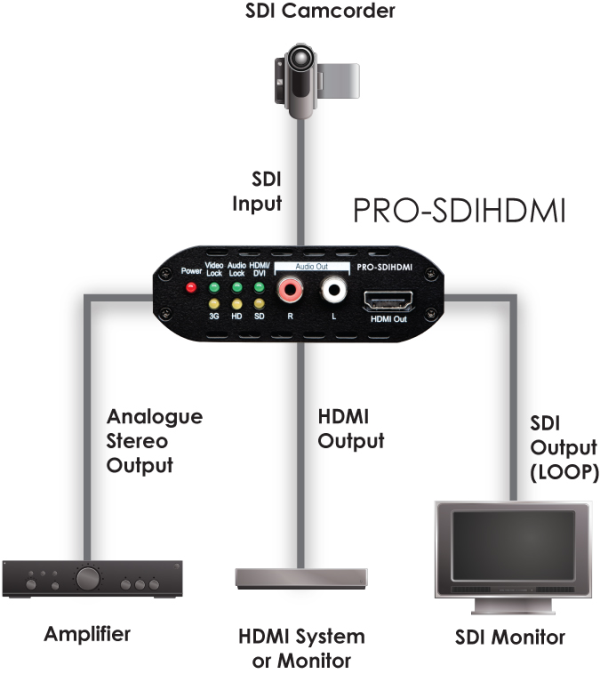

Accepts SD-SDI, HD-SDI, and 3G-SDI signals and converts to HDMI. The SDI input also has a bypass which is outputted simultaneously alongside the HDMI output allowing the SDI signal to be extended over distances up to 300m. This device also has the added benefit of an integrated audio de-embedder for sending 2-channel (L/R) audio to an AV amplifier.
€ 395,00 Excl. VAT .
Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschlieÃend eine kostenlose Beratung an!
Description
Technical Specification
Input:
1 x BNC female

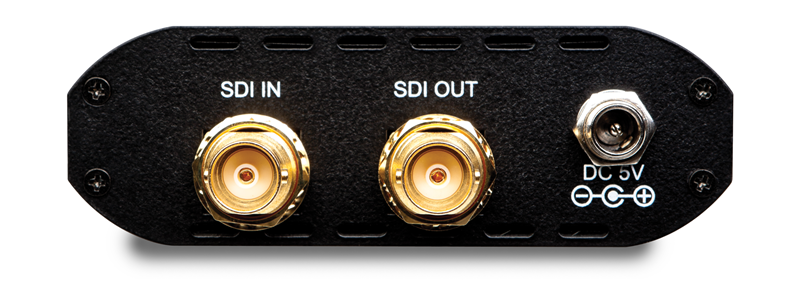

Outputs:
1 x BNC female
1 x HDMI female
2 x RCA female
Resolutions supported:
480i to 1080p
Formats supported:
Video: HDMI1.3, SMPTE 425M (Level A und Level B), 424M, 292M, 259M-C
Audio: Stereo Audio
Producer
CYP Europe
Product
PROSDIHDMI
Gehäuse
Metall
Weight (kg)
0,40
Color
Schwarz
Power supply type
Extern
Stromversorgung
5V / 2,6A DC
Operating
0°C - 40°C
Abmessungen BxHxT mm
137 x 90 x 25
Artikel Nr.
4833
