Converter Audio 4 Channels balanced to Dante AU-DTI4-TX

Hersteller

AUDTI4TX

The AU-DTI4-TX is a 4-channel analogue audio to Dante output transmitter. Thanks to the integrated support for Dante technology, which extends and routes audio across standard Ethernet networks, this unit forms an important part of an easier and more flexible system for managing large audio systems than traditional point-to-point physical wiring. Dante does away with the bundles of heavy, expensive, multi-core analogue audio cables and replaces it with low cost, and easy to manage, Cat.5e or Cat.6 cables while maintaining the high quality expected from uncompressed digital audio. Due to the nature of packet-based Ethernet data transmission, there is no need to worry about the traditional enemies of long distance audio extension, such as analogue signal interference, crosstalk, or signal attenuation. All of this is provided with the absolute minimum of latency (typically around 1ms). The unit is equipped with four analogue mono audio inputs and one Dante output port which can transmit up to 4 digital audio channels and is compatible with any standard Dante audio receivers that the audio might be routed to. Each audio input can optionally supply phantom power (5v or 48v) if needed by a connected audio source, such as a microphone, as well as a Pre-Gain level adjustment. It is powered directly by PoE (Power over Ethernet) which allows for increased installation location flexibility. Basic device configuration is provided by serial over USB while routing and network configuration management is provided via 3rd party control software.

€ 330,00 Excl. VAT .

Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschließend eine kostenlose Beratung an!

Description


Technical Specification

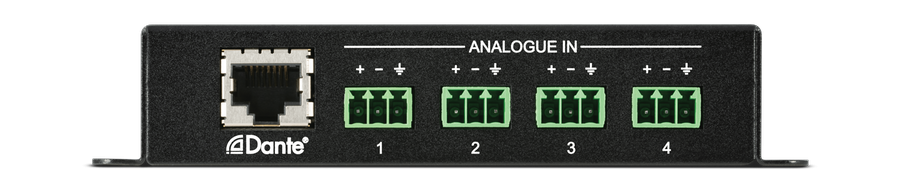

Inputs:
4 x 3 Pin Phoenix Analogue Audio (mono) sym. Buchse
Outputs:
1 x RJ45 female (Dante)
Formats supported:
Audio: Mono Audio
PoE: 802.3af

Producer
CYP Europe
Product
AUDTI4TX
Gehäuse
Metall
Weight (kg)
0,65
Color
Schwarz
Power supply type
Extern
Stromversorgung
PoE
Operating
0°C - 40°C
Abmessungen BxHxT mm
128x25x108 mm
Artikel Nr.
8845
