Converter analog Video to SD-SDI CONVI104

Hersteller

CONVI104

Converts an analog TV-signal into an SD-SDI signal following the ITU-R601 standard. The signal to be converted is selected among 3 incoming signals in CV, Y/C, YCbCr format. Each input combined audio. Works as generator as well presenting a set of 3 patterns. An optional FS board can be inside installed.

€ 90,00 Excl. VAT .

Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschließend eine kostenlose Beratung an!

Description


Technical Specification

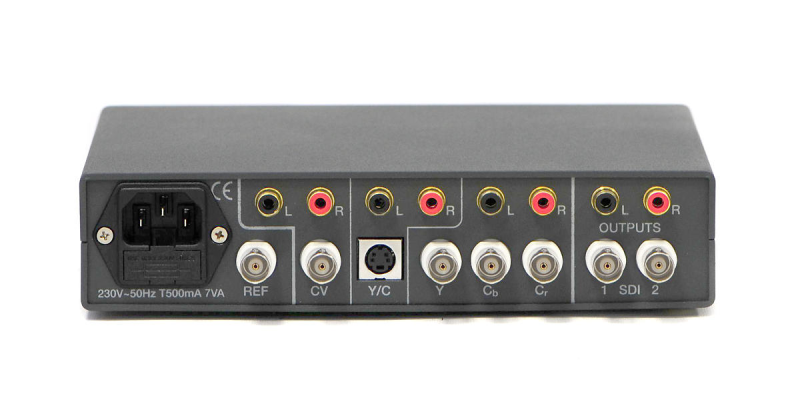

Inputs:
1 x CV
1 x Y/C
1 x YCbCr
Outputs:
1 x SD-SDI, ITU-R601
1 x L/R Audio
PAL/NTSC kompatibel
10 bit ADC sampling

Producer
Elpro Video Labs
Product
CONVI104
Gehäuse
Metall
Weight (kg)
0,90
Color
Schwarz
Power supply type
Intern
Stromversorgung
230 V
Abmessungen BxHxT mm
200 x 44 x 170
Artikel Nr.
2941
