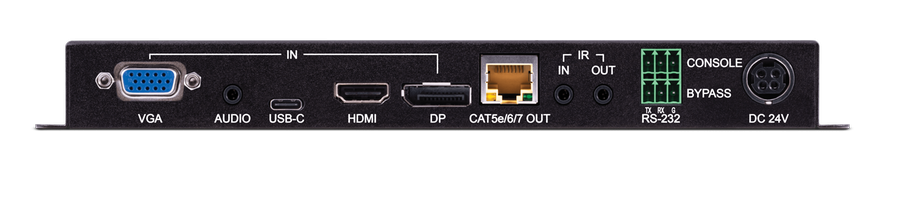

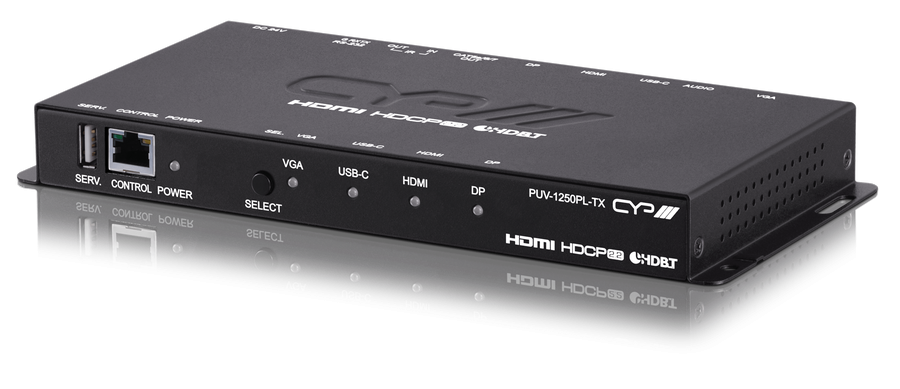

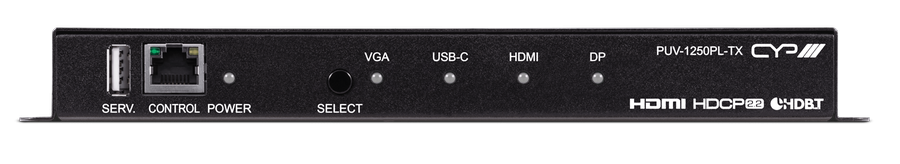

CAT TX (HDBTLITE) DP, HDMI, VGA+A, USB-C/ RS232/ IR PoH 60m PUV-1250PL-TX
PUV1250PLTX
HDBaseT output supports resolutions up to 4K@60Hz (4:2:0, 8-bit) or 4K@30Hz (4:4:4, 8-bit). 4K@50/60Hz (4:4:4, 8-bit) or 4K@any (10/12-bit) sources will be automatically converted to 1080p.
HDMI 2.0, DisplayPort 1.4, and DVI 1.0 compliant HDMI, DisplayPort, VGA with analogue audio, and USB Type-C inputs
Integrated auto-switching across all digital video inputs
Supports pass-through of many audio formats including 8 channel LPCM, Bitstream, and HD Bitstream
Signal event automation using CEC commands
Comprehensive EDID & HDCP management
USB Type-C port provides power (up to 60W) or charge to any compatible device
Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschlieÃend eine kostenlose Beratung an!
Description
Technical Specification
1x 15pin Dsub [1x VGA RGBHV]
1x USB-C [1x USB-C / Thunderbolt]
Inputs:
1x HDMI [1x HDMI Uncompressed AV and Data]
1x Display Port [1x Display Port Uncompressed AV]
1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]
1x Phoenix (3 pin) [1x Local RS-232]
1x Phoenix (3 pin) [1x Remote RS-232]
1x RJ45 [1x IP Control]
1x USB Type A [1x Service Port Propriety Data]
Outputs
1x RJ45 [1x HDBaseT HDMI & Propriety Data]
1x 3.5mm Stereo mini-jack [1x Infra Red Emitter]
PSU: 24V/3.75A
