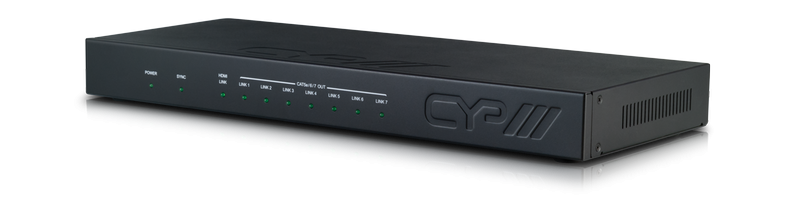

CAT Transmitter/ Splitter 1:7 (HDBaseTLITE) HDMI 2K,4K/ IR PU-1H7HBTL
PU1H7HBTL

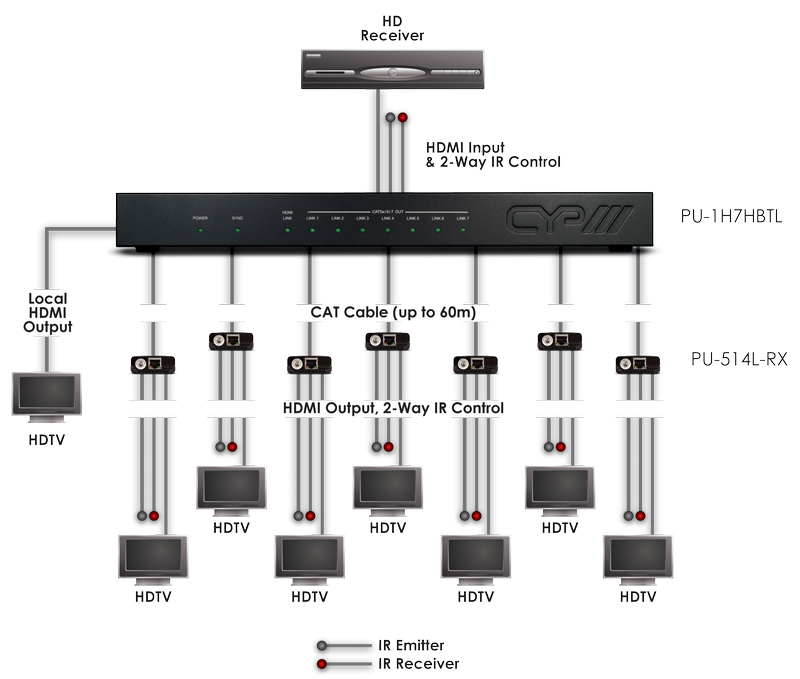

Accepts one HDMI1.4 input and splits this signal to seven HDBase T and one HDMI outputs. Transmission from HDMI, LAN, PoE and IR up to 100m via CAT5e, CAT6 and CAT7 and max. 10.2 Gbps. PU-514L-RX or PU-514L-WPRX Receivers are recommended to utilise the full functionality of the HDBaseT™ LITE outputs of this device.
Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschlieÃend eine kostenlose Beratung an!
Description
Technical Specification
Inputs:
1 x HDMI female
1 x Mini Jack 3,5 mm for IR
1 x RJ45 LAN for firmware update or control
1 x Mini USB for service
Outputs:
1 x HDMI female
7 x RJ45 LAN HDBaseT
1 x Mini Jack 3,5 mm for IR
Control options:
CEC, LAN, Mini-USB oder IR
Resolutions supported:
640x480 to 1920x1200 and 480i to 1080p
Formats supported:
Video: HDMI1.4, HDCP 1.1 und DVI 1.0 (Deep Color 10 & 12 bit) max. 10.2 Gbps pro Kanal
Audio: 7.1CH & Dolby TrueHD, DTS-HD
