CAT Transmitter/ Schalter 2x8 (HDBaseT) HDMI 2K,4K/ LAN/ IR/ PoE PU-2H8HBTE-AD
PU2H8HBTEAD

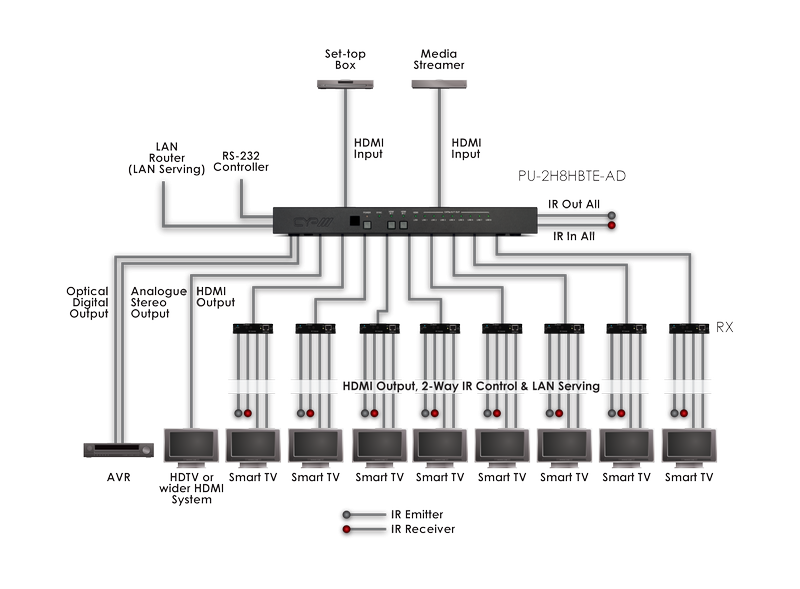

Accepts two HDMI inputs and switch this signal to one HDMI output and seven HDBaseT outputs. The unit have also a HDMI Audio Deembedder for analoge and digital audio. Transmission from HDMI, LAN, PoE RS232 and IR via CAT5e (80m), CAT6 and CAT7 (100m) and max. 10.2 Gbps. The PU-507-RX, PU-507RX-2H, PU-507RX-SCD, PU-507-WPRX and PU-1109-RX Receivers are recommended to utilise the functionality of the HDBaseT outputs of this device.
Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschlieÃend eine kostenlose Beratung an!
Description
Technical Specification
Inputs:
2 x HDMI female
1 x Mini Jack 3,5 mm for IR
1 x RJ45 LAN for firmware update or control
1 x Mini USB for service
Outputs:
1 x HDMI female
8 x RJ45 LAN HDBaseT
2 x RCA female (analog Audio)
1 x Toslink female (digital Audio)
1 x Mini Jack 3,5 mm for IR
Control options:
CEC, LAN, Mini-USB oder IR
Resolutions supported:
VGA, SVGA, XGA, WXGA, SXGA, UXGA, WUXGA and 480i to 1080p, 2K, 4K
Formats supported:
Video: HDMI (10,2 Gbps), HDCP 1.1 und DVI 1.0 (Deep Color 10 & 12 bit)
Audio: 7.1CH & Dolby TrueHD, DTS-HD
