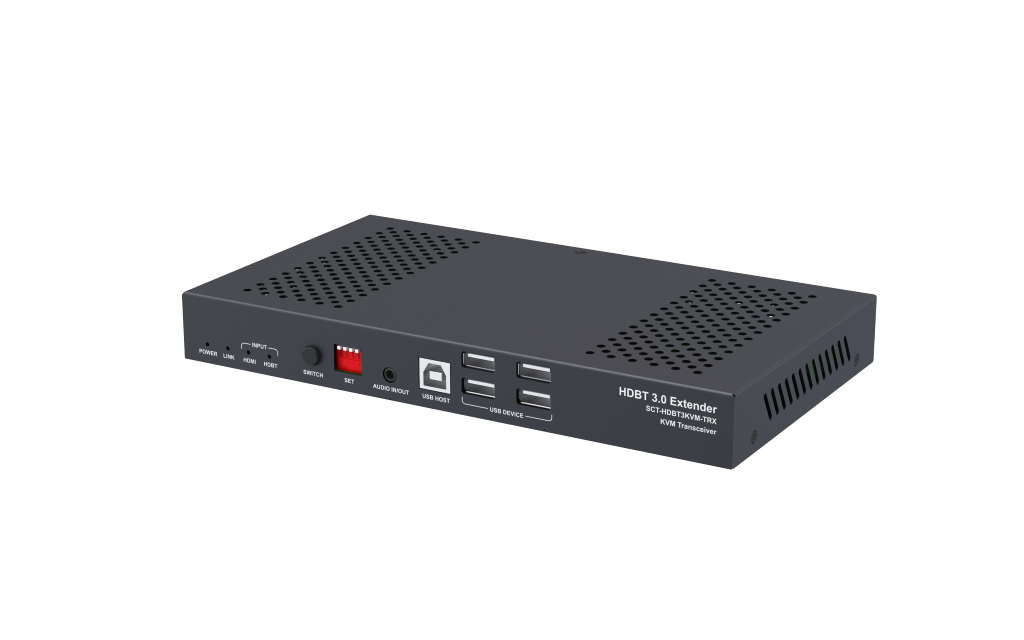

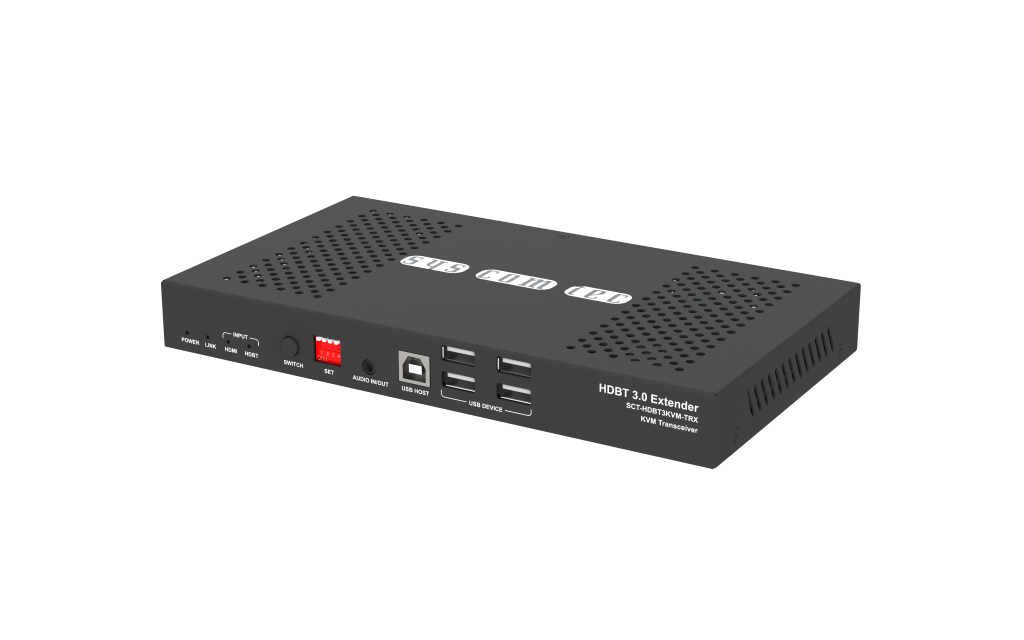

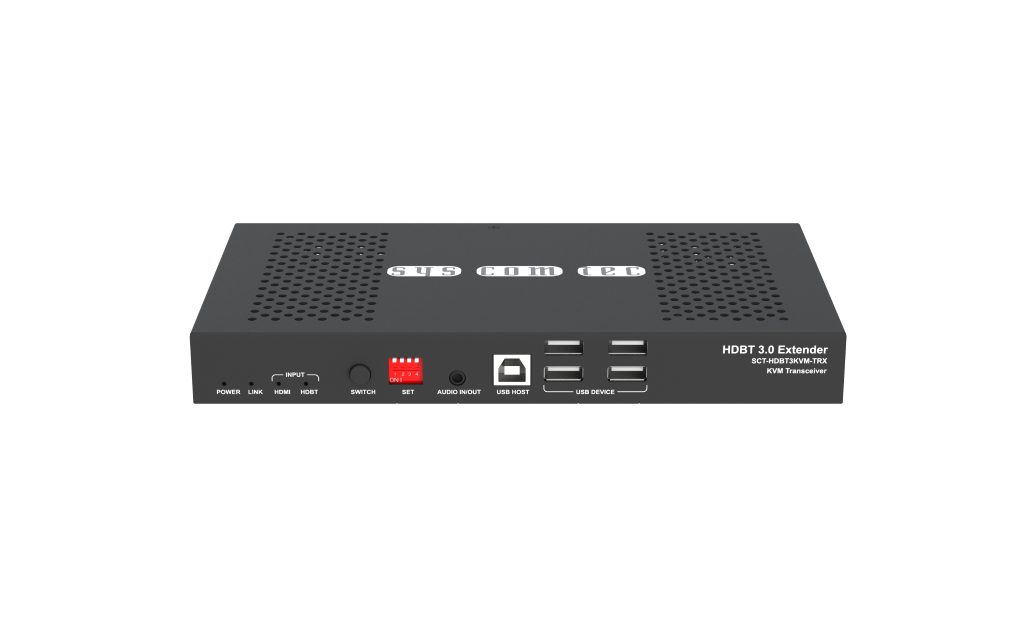

CAT Transceiver HDMI2.0 UHD/4K/ IP/ RS232/ USB2.0/PoH 100m SCT-HDBT3KVM-TRX

Hersteller

SCTHDBT3KVMTRX

This device is an HDBT 3.0 extender based on the new generation of HDBT 3.0 platform, which can transmit the uncompressed HDMI2.0 video signal up to 4K@60Hz 4:4:4 8-bit over 100m Cat 6a cable.

€ 490,00 Excl. VAT .

Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschließend eine kostenlose Beratung an!

Description


Technical Specification

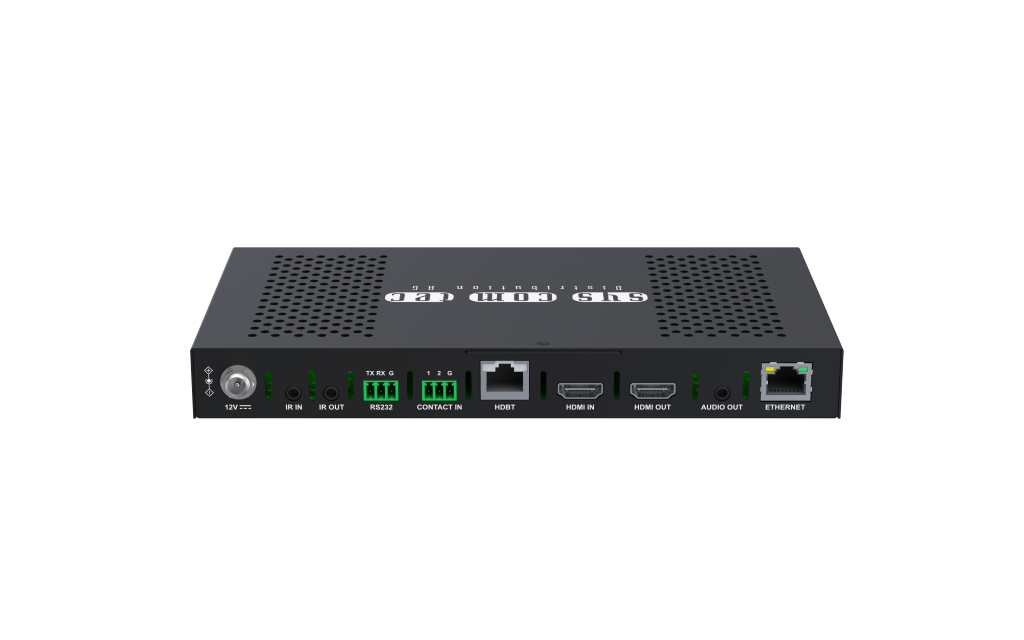

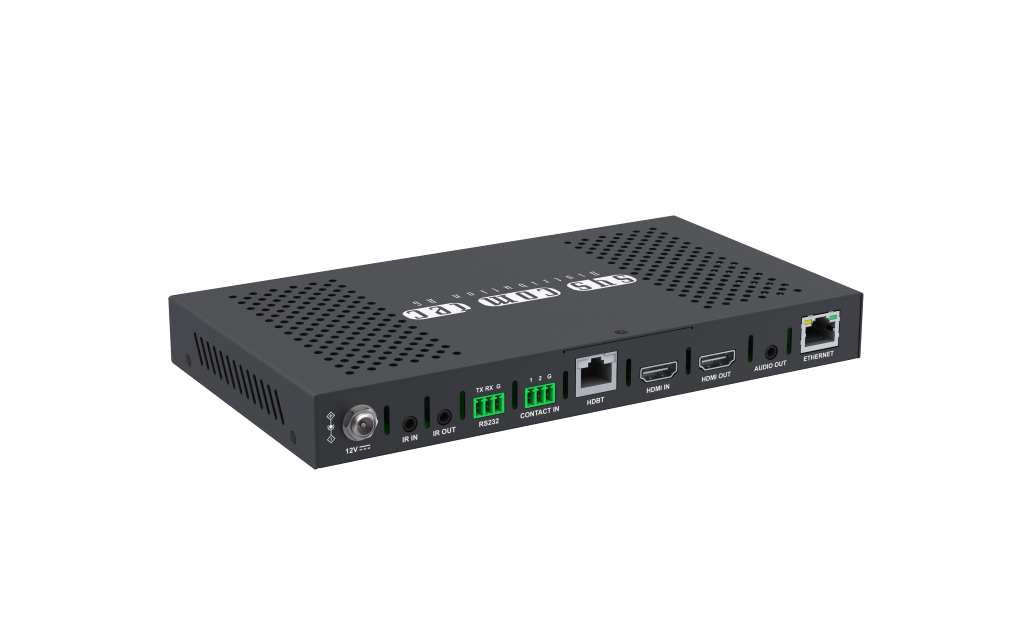

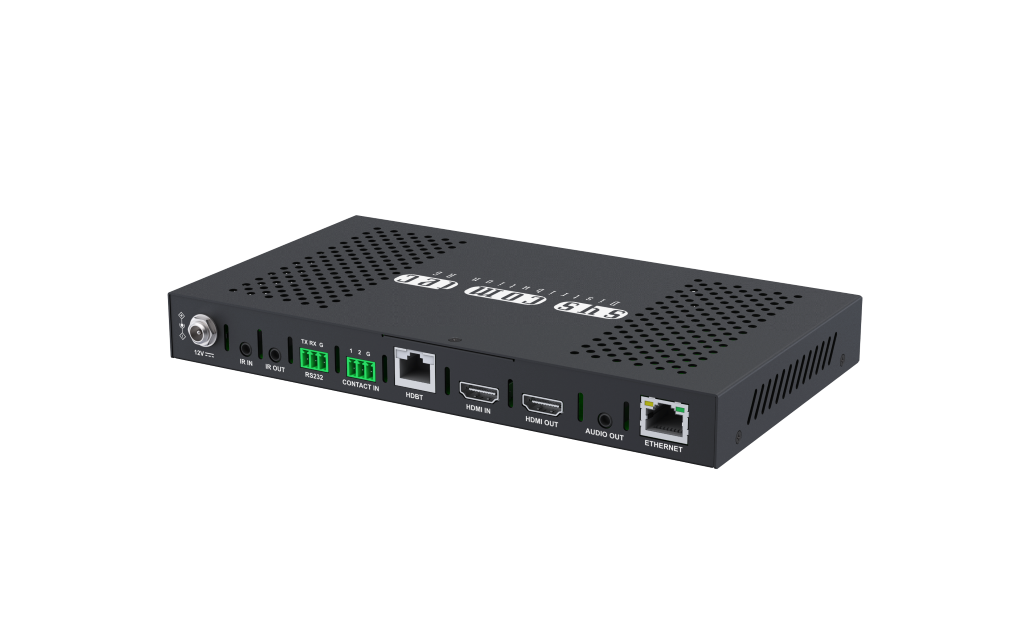

Inputs/ Outputs:
1 x RJ45 female (HDBT Transmitter or Receiver Mode)
1 x HDMI female (IN)
1 x HDMI female (OUT)
1 x 3,5mm Klinke Audio female (IN)
1 x 3,5mm Klinke Audio female (OUT)
1 x 3,5mm Klinke Audio female (OUT)
1 x RJ45 LAN female
1 x USB B female (IN)
4 x USB A female (OUT)
1 x 3 Pin Phoenix RS232 female
1 x 3,5mm Klinke IR female (IN)
1 x 3,5mm Klinke IR female(OUT)
1 x 3 Pin Phoenix GPIO female
Solutions supported:
VGA bis WUXGA, 2560x1440, 2560x1600 und 720p bis 1080p und UHD/4K@60Hz 4:4:4
Formats supported:
Video: HDMI2.0, HDCP2.2/ 1.4, CEC und DVI 1.0
Audio: Stereo Audio
control: USB1.1, USB2.0 (max. 300 Mbps)
Standard: HDBaseT3

Producer
syscomtec
Product
SCTHDBT3KVMTRX
Gehäuse
Metall
Weight (kg)
0,44
Color
Schwarz
Power supply type
Extern, PoC/ PoH
Stromversorgung
12V, 3A (
Operating
0° C - 45° C
Abmessungen BxHxT mm
215x25x120 mm
Artikel Nr.
8539
