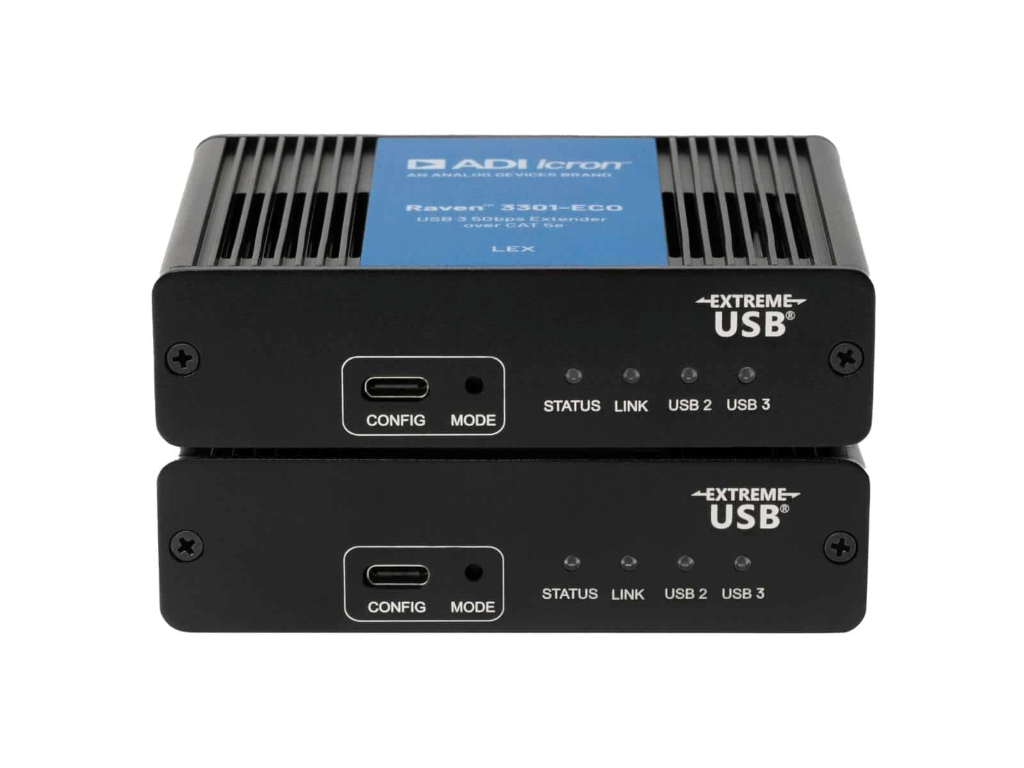

CAT System USB3.2/USB2.0/USB1.1 1 Port 100m Raven 3301-ECO
3301ECO
The Raven 3301-ECO system transmits a Hi-Speed USB3.2 (up to 5Gbps), USB2.0 (up to 480 Mbps) & USB1.1 (Up to max. 12 Mbps).

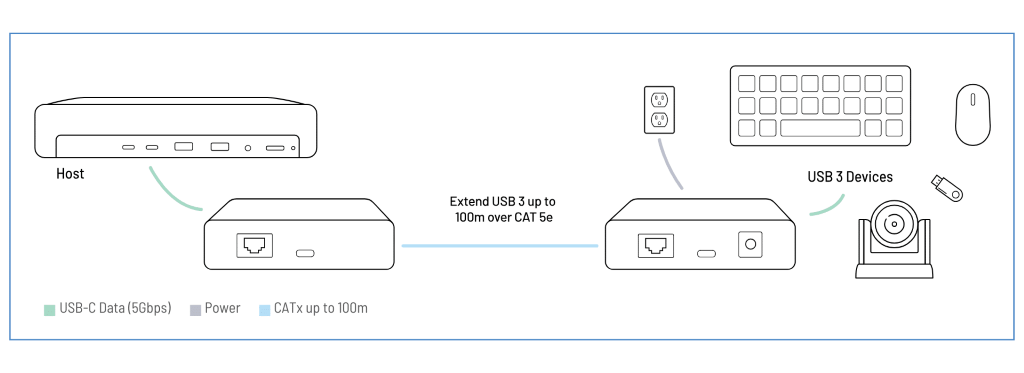

Extends USB 3-2-1 up to 100m though a single CAT5e/ 6a/ 7 cable. Supplies 3A (15W) per USB-C. 31 USB devices Supports the following PC systems: Windows, Mac OS and Linux. Special features for Google Hangouts, USB cameras & Capture Devices. Support for Isochronous USB 3 Transactions.
Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschlieÃend eine kostenlose Beratung an!
Description
Technical Specification

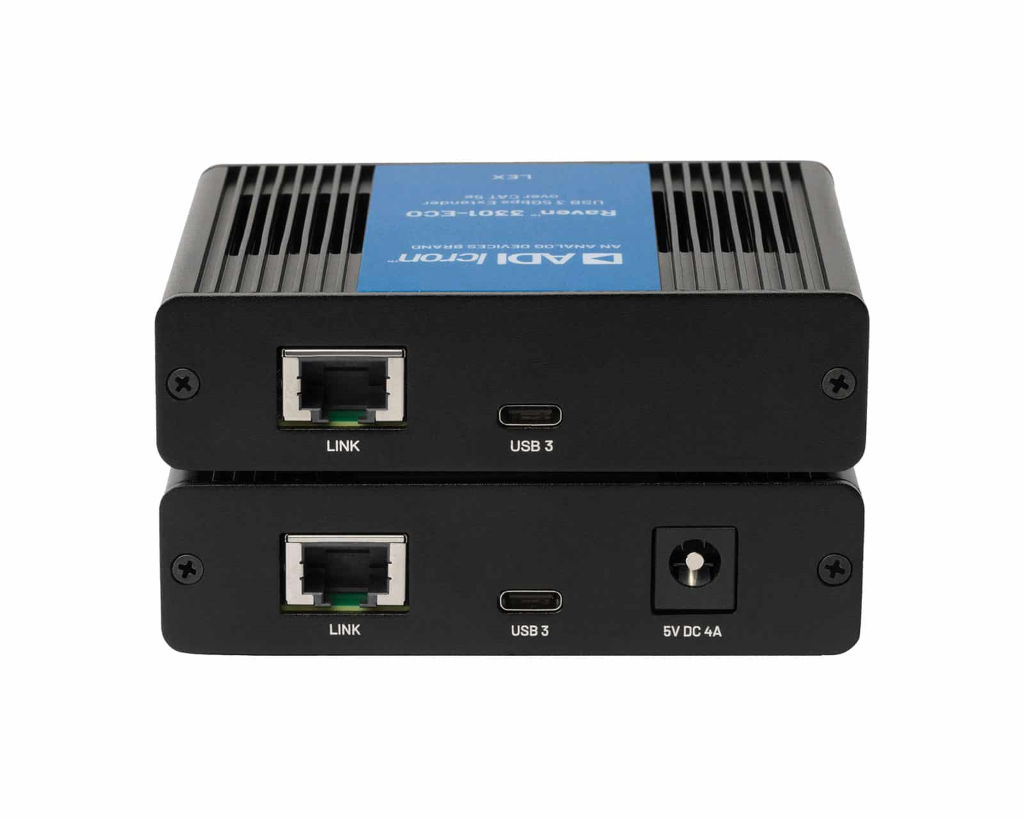

Transmitter
Input:
1 x USB-C female
Outputs:
1 x RJ45 CAT female
Receiver
Inputs:
1 x RJ45 CAT female
Outputs:
1 x USB Typ C female
Formats supported:
USB3.2, 2.0, 1.1 (Control, Interrupt, Isochronous und Bulk)
