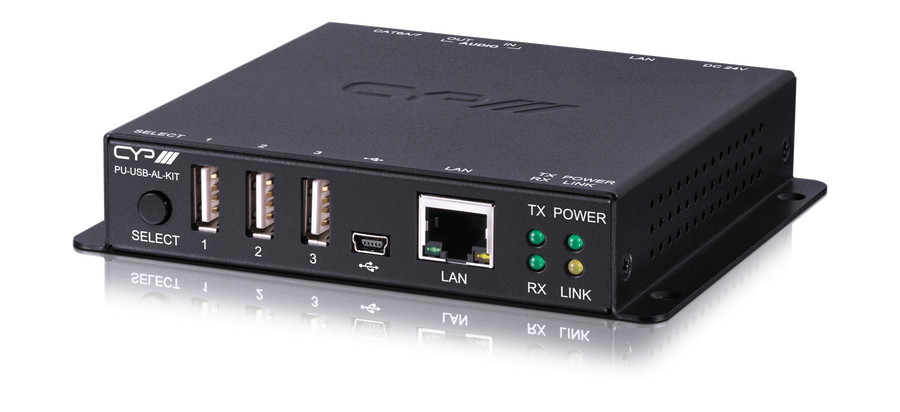

CAT system USB2.0 6 Port/ LAN/ two way Analogue Audio/ Power 100m PU-USB-AL-KIT
PUUSBALKIT

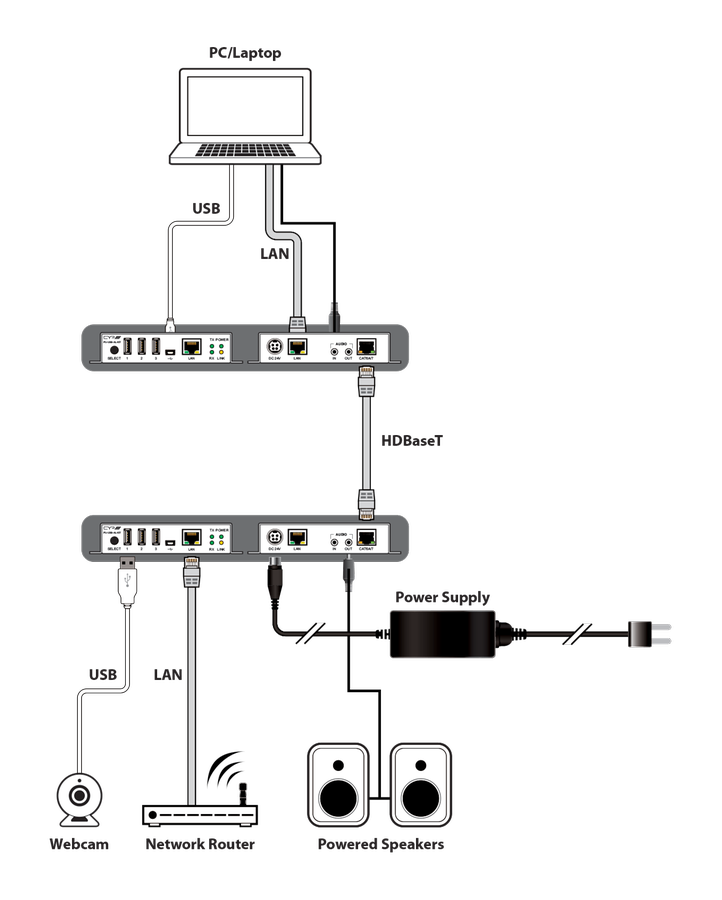

The system transmit a Hi-Speed USB2.0 (max. 480 Mbps) or USB1.1 (max. 12 Mbps), LAN and 2 channel analogue Audio over 1 CAT6/ 7 Kabel up to 100m. Typically a system can support one USB host and up to 6 USB devices (3 on the transmitter side, and 3 on the receiver side). The USB host is automatically located by the device, alternatively, this can be selected via the front panel buttons. Bi-directional PoC (power over cable) is supported enabling either side of the system to provide power, perfect for managing power requirements within an installation. Set is with 2 Transceiver PU-USB-AL.
Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschlieÃend eine kostenlose Beratung an!
Description
Technical Specification

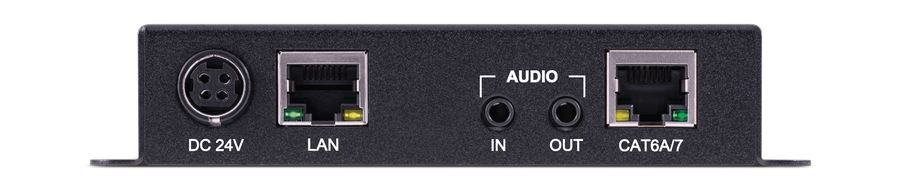

Transceiver
3 x USB-A female (USB2.0)
2 x RJ45 female (LAN 100 Mbit)
1 x RJ45 female (HDBaseT)
2 x 3,5mm jack female (analogue Audio)
1 x Mini-USB-B female (USB2.0)
Power by the Receiver:
3 x 500mA
