CAT System USB-C 4K (DP Alt mode) USB3.2/USB2.0/USB1.1 1 Port 100
63301

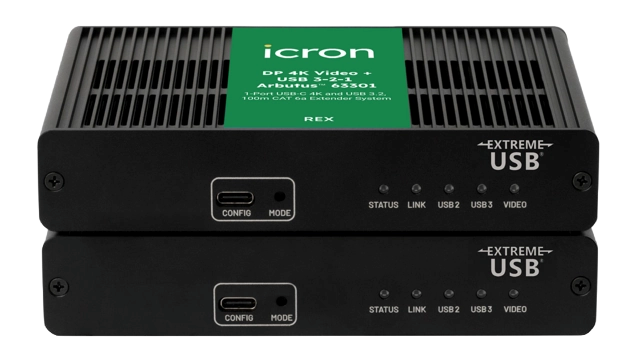

The Arbutus 63301 system enables the transmission of a USB-C signal at 4K@60Hz 4:4:4 over 2 lanes of HBR3 (DP Alt Mode) and a Hi-Speed USB 3.2 Gen 1, USB 2.0, and USB 1.1 signal over a single 6A/7 cable. The transmission range is up to 100 meters. Delivers up to 15W to the USB-C port. Up to 31 USB devices can be controlled. Supports the following PC systems: Windows, Mac OS, Linux, and Chrome OS. No USB hubs (stages) are required (hubless).
Translated with DeepL.com (free version)
Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschlieÃend eine kostenlose Beratung an!
Description
Technical Specification
Transmitter
Input:
1 x USB-C female
Outputs:
1 x RJ45 CAT female
Receiver
Inputs:
1 x RJ45 CAT female
Outputs:
1 x USB Typ C female
Formats supported:
USB-C (DP Alt mode), HDCP2.2, USB3.2, 2.0, 1.1 (Control, Interrupt, Isochronous und Bulk)
