CAT System IR 250m PU-IR01-KIT
PUIR01KIT

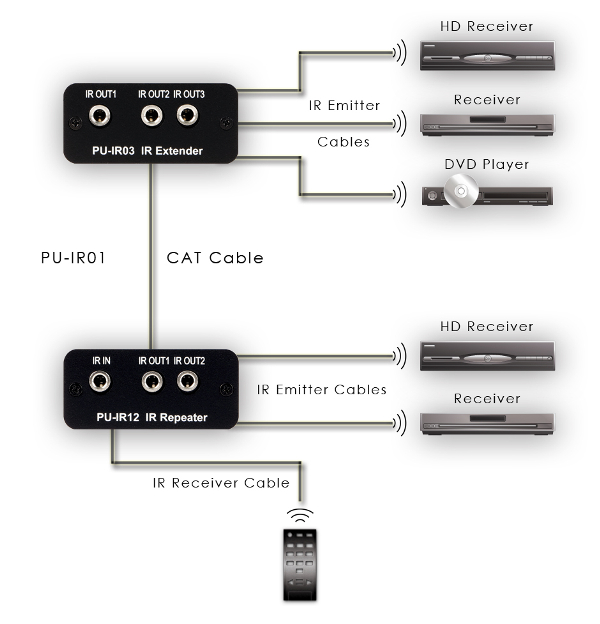

The IR Extender and the Repeater set is perfect for controlling IR controlled source equipment over long distances. Up to five sources can be controlled using this extender set. Two sources can be controlled located locally to the repeater, whilst the remaining three sources can be controlled locally to the extender, which can be located up to 250m away via CAT5/6 cable. This system allows for the sources to be controlled by their own original remote controls, from extended distances. A 5-eye emitter accessory can be supplied for additional control of extra source equipment.
Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschlieÃend eine kostenlose Beratung an!
Description
Technical Specification
Transmitter
Inputs:

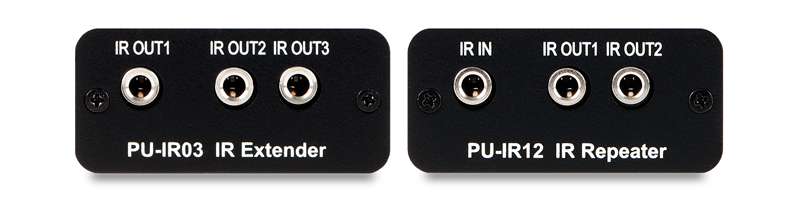

1 x 3,5mm jack female for IR
Outputs:
2 x 3,5mm jack female for IR

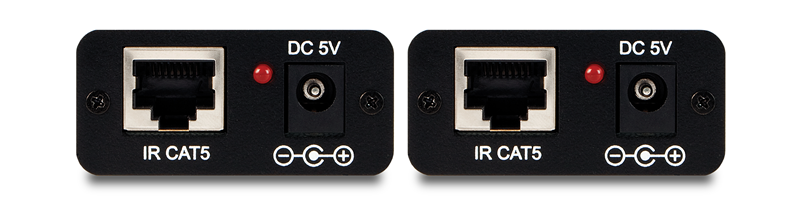

1 x RJ45 female
Receiver:
Input:
1 x RJ45 female
Outputs:
3 x 3,5mm jack female for IR
Formats supported:
IR
