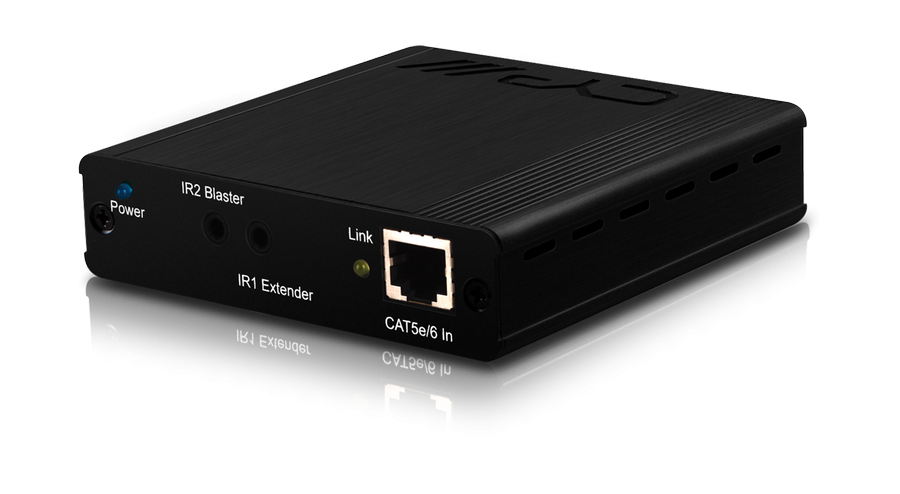

CAT Receiver (HDBaseT) HDMI 2K,4K/ LAN/ RS232/ IR/ PoE 100m PU-507-RX

Hersteller

PU507RX

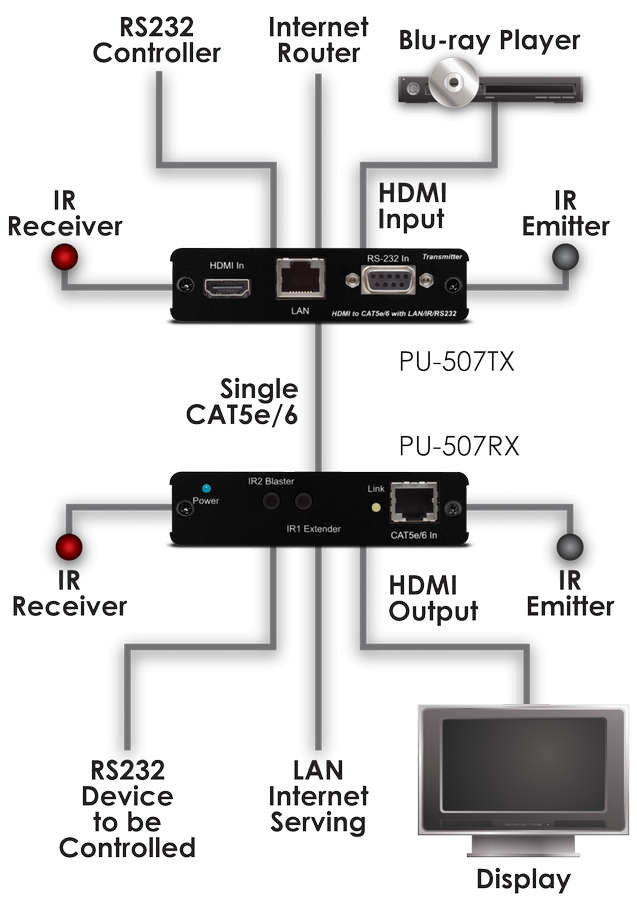

Allows the conversion of a CAT signal back into a HDMI (max. 4k, 2k and 1080p) incl. audio or DVI signal, HDMI, CEC, LAN, IR and RS232 tw signals with 1UTP CAT5 (up to 80m) or CAT6/7 (up to 100m) cable with HDBaseT technology. Only in conjunction usable with PU-507-TX, PU-507TX-HDVGA, PU-507-TX1H, PU-8H8CTX, PU-8H8CTXIR and PU-8H8HBT. Full HDCP and PoE compatible. Transmission of 4k, 2k or 1080p@60Hz.

€ 345,00 Excl. VAT .

Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschließend eine kostenlose Beratung an!

Description


Technical Specification

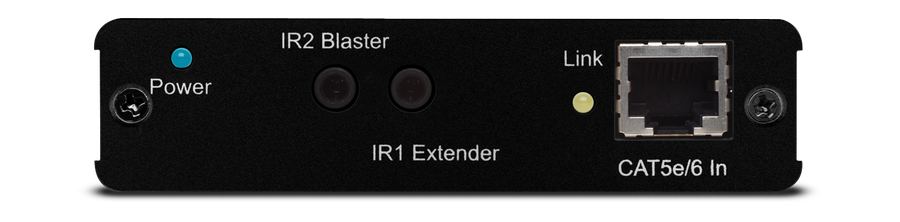

Inputs:
1 x RJ45 female

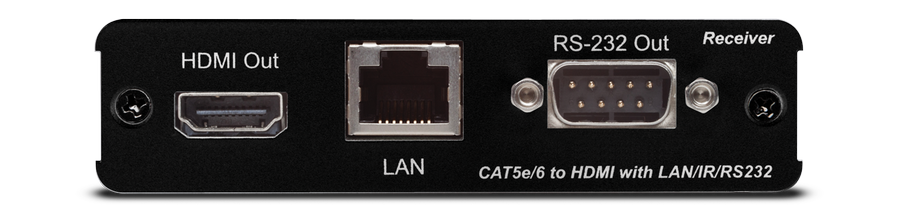

Outputs:
1 x HDMI female
1 x RJ45 female (LAN (I/O) IP)
1 x 9 Pin D-Sub RS232 female
1 x 3,5mm jack female for IR
Resolutions supported:
VGA, SVGA, XGA, WXGA, SXGA, UXGA, WUXGA and 480i to 1080p, 2K, 4K
Formats supported:
Video: HDMI1.4 (10,2 Gbps), 3D, HDCP 1.1, 2.2 und DVI 1.0 (Deep Color 10 & 12 bit), CEC
Audio: Audio7.1, Dolby TrueHD, DTS-HD

Producer
CYP Europe
Product
PU507RX
Gehäuse
Metall
Weight (kg)
0,30
Color
Schwarz
Power supply type
Extern
Stromversorgung
24V / 1A DC
Operating
0°C - 40°C
Abmessungen BxHxT mm
75 x 24 x 72
Artikel Nr.
4882
