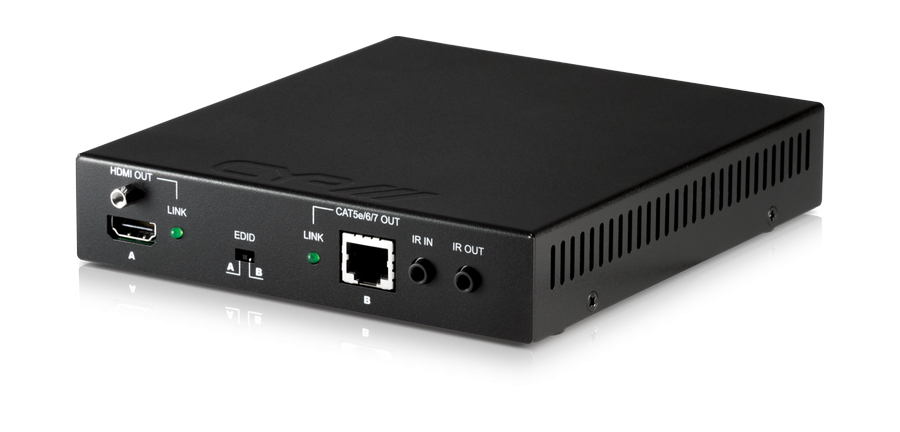

CAT Receiver (HDBaseT) HDBaseT/ HDMI/ LAN/ IR/ PoE 100m PU-HBTE-ZE
PUHBTEZE
Allows the conversion of a CAT signal back into a HDMI (max. 1080p, 2K, 4K) with Audio/ CEC, LAN and IR with 1 UTP CAT5 (up to 80m) or CAT6/7 (up to 100m) cable with HDBaseT technology. The HDBaseT loop output for a another receiver.
This device can be cascaded up to four times. The PoE get the last receiver. Please use: PU-507-TX, PU-507-TX1H, PU-507TX-HDVGA, PU-8H8CTX, PU-8H8CTXIR, PU-8H8HBTE und PU-8H16HBT.
Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschlieÃend eine kostenlose Beratung an!
Description
Technical Specification

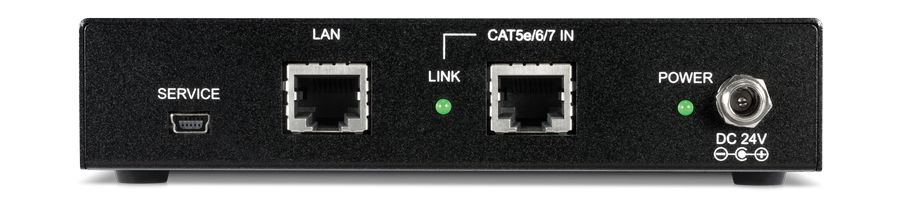

Inputs:
1 x RJ45 female
1 x 3,5mm jack female for IR

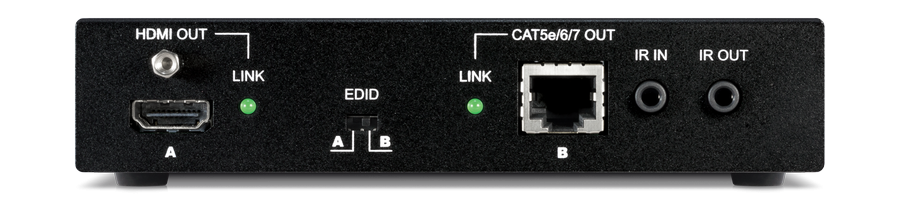

Outputs:
1 x RJ45 female
1 x HDMI female
1 x RJ45 female (LAN (I/O) IP)
1 x 3,5mm jack female for IR
Resolutions supported:
VGA, SVGA, XGA, WXGA, SXGA, UXGA, WUXGA and 480i to 1080p, 2K, 4K
Formats supported:
Video: HDMI1.4 (10,2 Gbps), 3D, HDCP 1.1 und DVI 1.0 (Deep Color 10 & 12 bit), CEC
Audio: Audio7.1, Dolby TrueHD, DTS-HD
